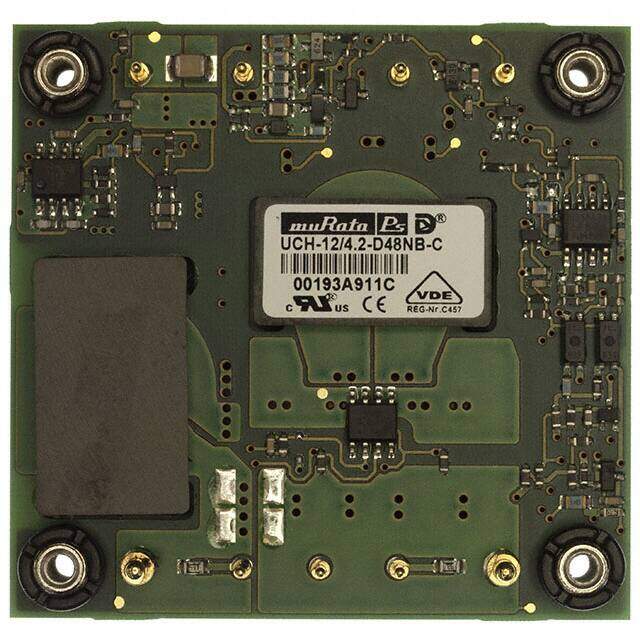

UCH-12/4.2-D48N-C
RoHS
/
Package 9-DIP Module, 1/2 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 12Vout 4.2A 50.4W 48Vin Neg Polarity
PDF
/
Inventory: 9929
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 10.16mm
Technical
Nominal Input Voltage 48V
Current - Output 1 4.2A
Output Power 50W
Output Current 4.2A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 4.2A
Output Voltage 12V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 90.5%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-P9
Pin Count 9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 50W
Power Rating 50.4W
Applications ITE (Commercial)
Terminal Finish GOLD OVER NICKEL
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 2.40Lx2.30W x 0.40 H 61.0mmx58.4mmx10.2mm
Series UCH
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Number of Pins 8
Package / Case 9-DIP Module, 1/2 Brick
Mounting Type Through Hole
Mount Through Hole
