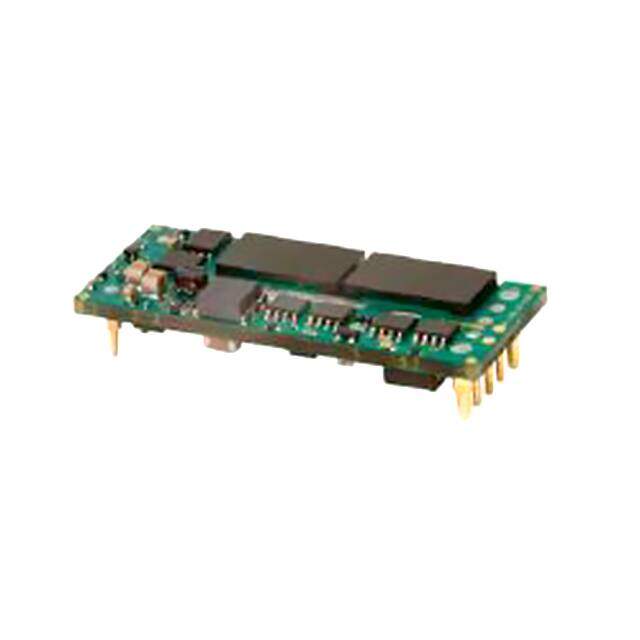

UCE-5/10-D48N-C image
Favorite
UCE-5/10-D48N-C image
Favorite
RoHS
/
Package 8-DIP Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters 48Vin 5Vout 10A 50W negative polarity
PDF
/
Inventory: 3514
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 22.86mm
Length 58.42mm
Height 9.398mm

Technical

Isolation Isolated
Nominal Input Voltage 48V
Current - Output 1 10A
Max Input Voltage 75V
Min Input Voltage 36V
Output Power 50W
Output Current 10A
Current - Output (Max) 10A
Voltage - Input (Min) 36V
Voltage - Output 1 5V
Max Output Current 10A
Output Voltage 5V
Voltage - Input (Max) 75V
Voltage - Isolation 2.25kV
Efficiency 90.5%
Number of Outputs 1
Depth 22.9mm
Max Power Dissipation 50W
Power (Watts) 50W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 2.30Lx0.90W x 0.37 H 58.4mmx22.9mmx9.4mm
Series UCE
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 8
Package / Case 8-DIP Module, 1/8 Brick
Mounting Type Through Hole
Mount Through Hole
