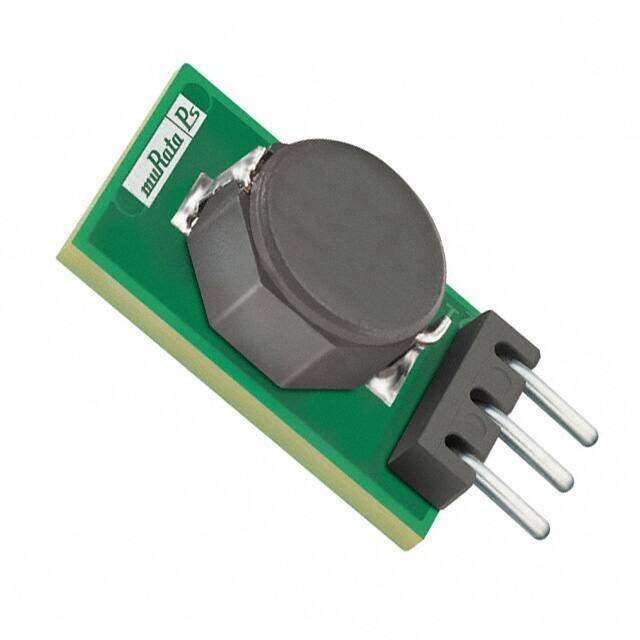

OKI-78SR-12/1.0-W36-C
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 12W
PDF
/
Buying Options
Total Price: USD $4.37
Unit Price: USD $4.3736
≥1 USD $4.3736
≥10 USD $4.3296
≥100 USD $4.29968
≥500 USD $4.238432
≥1000 USD $4.106256
≥3000 USD $3.841992
Inventory: 1234
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Through Hole
Package / Case 3-SIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series Okami? OKI-78SR
Size / Dimension 0.41Lx0.30W x 0.65 H 10.4mmx7.6mmx16.5mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Linear Regulator Replacement
Applications ITE (Commercial)
Number of Outputs 1
Efficiency 95.3%
Voltage - Input (Max) 36V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 15V
Current - Output (Max) 1A
Output Power 12W
Dimensions
Height 16.5mm
Compliance
RoHS Status RoHS Compliant
