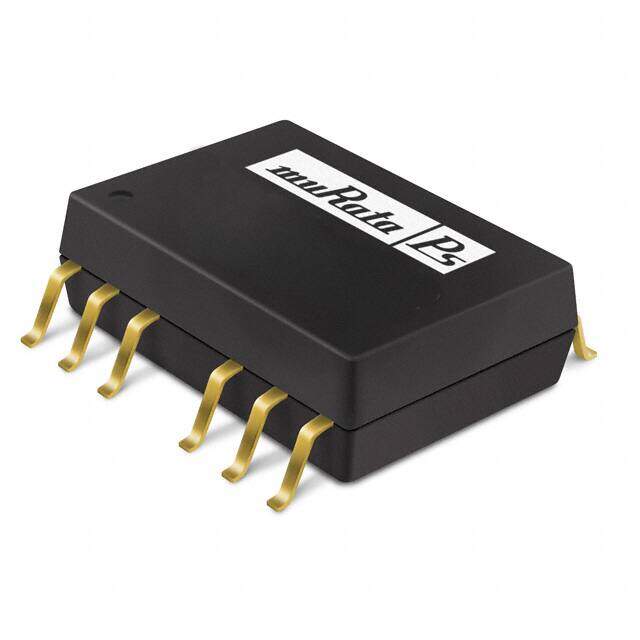

NTFS0512MC
RoHS
/
Package 26-SMD Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERT DC/DC SMD 1W 5-12V 83MA
PDF
/
Inventory: 1400
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 6.604mm
Technical
Min Input Voltage (DC) 4V
Max Input Voltage (DC) 6V
Nominal Output Voltage 12V
Max Output Power 1W
Nominal Input Voltage 5V
Current - Output 1 83mA
Output Power 1W
Output Current 83mA
Trim/Adjustable Output YES
Input Voltage-Nom 5V
Max Output Current 83mA
Output Voltage 12V
Voltage - Input (Max) 6V
Voltage - Isolation 1kV
Efficiency 67%
Number of Outputs 1
JESD-30 Code R-PDMA-G26
Pin Count 26
Depth 12.7mm
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Power Rating 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Terminal Finish GOLD (2)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 26
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.70Lx0.50W x 0.26 H 17.8mmx12.7mmx6.6mm
Series NTF (1W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Number of Pins 12
Package / Case 26-SMD Module, 12 Leads
Mounting Type Surface Mount
Mount Surface Mount
