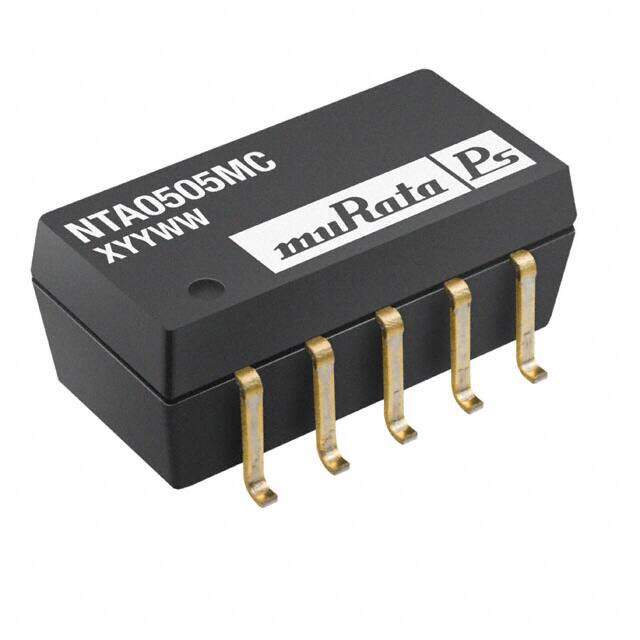

NTA0505MC image
Favorite
NTA0505MC image
Favorite
RoHS
RoHS RoHS compliant
Package 18-SMD Module, 10 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 5VIN 2-OUT 5V/-5V 0.1A/-0.1A 1W 10-Pin SMD Tube
PDF
/
Buying Options
Total Price: USD $7
Unit Price: USD $6.996
≥1 USD $6.996
≥10 USD $6.9608
≥100 USD $6.908
≥500 USD $6.8376
≥1000 USD $6.6704
≥3000 USD $6.3272
Inventory: 4974
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height 6.604mm

Technical

Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Current - Output 2 100mA
Isolation Isolated
Max Output Power 1W
Nominal Input Voltage 5V
Current - Output 1 100mA
Voltage - Output 2 -5V
Output Power 1W
Output Current 100mA
Current - Output (Max) 100mA 100mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Max Output Current 100mA
Output Voltage 5V
Voltage - Isolation 1kV
Efficiency 69%
Number of Outputs 2
Time@Peak Reflow Temperature-Max (s) 60
Depth 7.7mm
Number of Functions 1
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Power Rating 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Terminal Finish Gold (Au)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.60Lx0.30W x 0.26 H 15.2mmx7.6mmx6.6mm
Series NTA (1W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 10
Package / Case 18-SMD Module, 10 Leads
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
