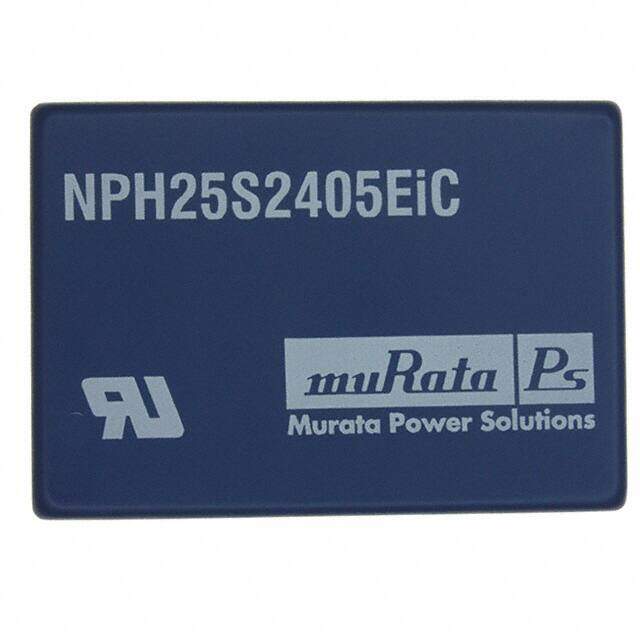

NPH25S2405EIC
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 25W 24VIN 5.1VOUT DIP
PDF
/
Buying Options
Total Price: USD $37.06
Unit Price: USD $37.060802
≥1 USD $37.060802
≥10 USD $34.963028
≥100 USD $32.983986
≥500 USD $31.116971
≥1000 USD $29.355631
Inventory: 6820
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-DIP Module
Number of Pins 6
Technical
Operating Temperature -40°C~110°C
Packaging Tube
Series NPH25S (25W)
Size / Dimension 1.97Lx1.38W x 0.39 H 50.0mmx35.1mmx9.9mm
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Applications ITE (Commercial)
Subcategory Other Analog ICs
Power Rating 25W
Max Power Dissipation 25W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
Depth 50mm
Pin Count 6
Number of Outputs 1
Efficiency 84%
Voltage - Isolation 1.5kV
Output Voltage 5.1V
Max Output Current 5A
Input Voltage-Nom 24V
Trim/Adjustable Output YES
Output Current 5A
Output Power 25W
Current - Output 1 5A
Nominal Input Voltage 24V
Max Output Power 25W
Isolation Isolated
Nominal Output Voltage 5.1V
Max Input Voltage (DC) 36V
Min Input Voltage (DC) 18V
Dimensions
Height 9.906mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
