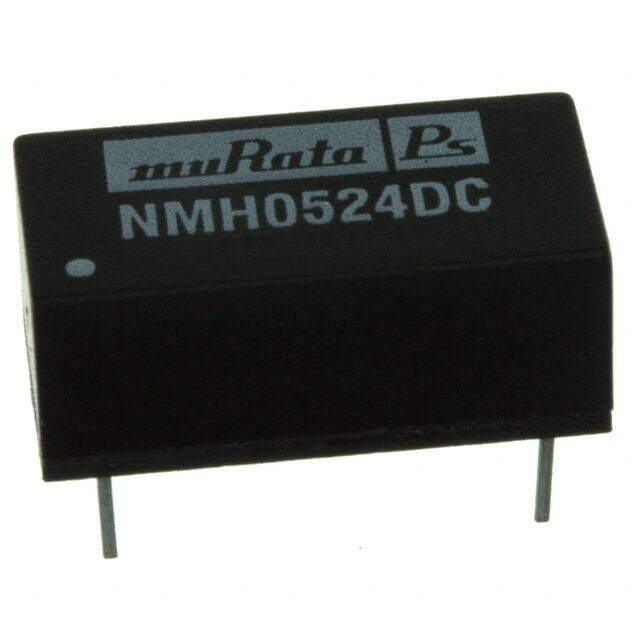

NMH0524DC
RoHS
/
Package 14-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 2W 5VIN 24VOUT DIP DL
PDF
/
Inventory: 1191
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 14-DIP Module, 6 Leads
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series NMH (2W)
Size / Dimension 0.77Lx0.39W x 0.30 H 19.6mmx9.9mmx7.6mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 6
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 2W
Max Power Dissipation 2W
Technology HYBRID
Terminal Position DUAL
Number of Functions 1
Depth 9.8mm
Pin Count 4
Number of Outputs 2
Efficiency 84%
Voltage - Isolation 1kV
Voltage - Input (Max) 5.5V
Output Voltage 24V
Max Output Current 42mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 42mA 42mA
Output Current 42mA
Output Power 2W
Voltage - Output 2 -24V
Current - Output 1 42mA
Total Power Output-Max 2W
Nominal Input Voltage 5V
Isolation Isolated
Dimensions
Height 7.62mm
Length 19.5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
