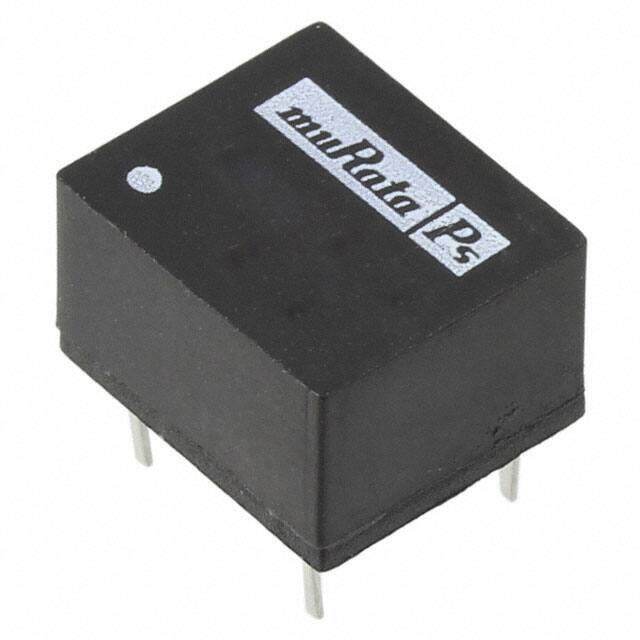

NME1209DC
RoHS
/
Package 8-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 12V to 9V 111mA DIP
PDF
/
Inventory: 1148
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 6.858mm
Technical
Isolation Isolated
Nominal Input Voltage 12V
Total Power Output-Max 1W
Current - Output 1 111mA
Output Power 1W
Output Current 111mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Max Output Current 111mA
Output Voltage 9V
Voltage - Input (Max) 13.2V
Voltage - Isolation 1kV
Efficiency 74%
Number of Outputs 1
JESD-30 Code R-XDMA-T8
Pin Count 8
Depth 9.8mm
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.39Lx0.45W x 0.27 H 9.9mmx11.4mmx6.9mm
Series NME (1W)
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Number of Pins 4
Package / Case 8-DIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
