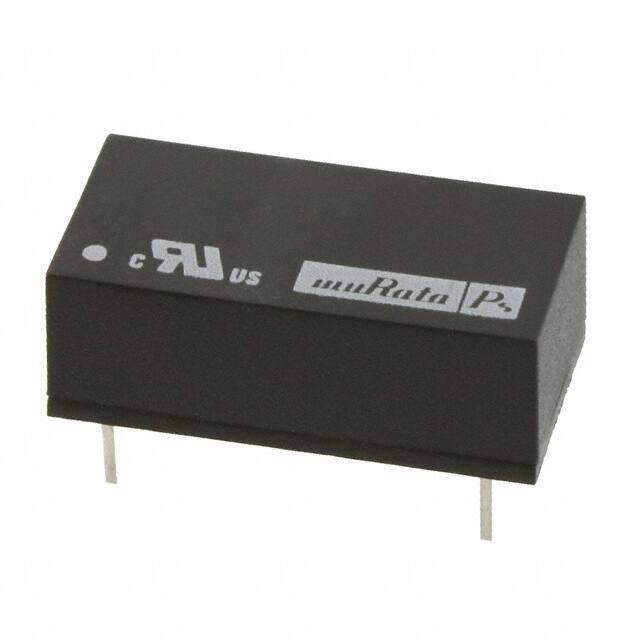

NMD050509DC image
Favorite
NMD050509DC image
Favorite
RoHS
/
Package 14-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters 1W TWIN 5-5/9V DIP Twin Output
PDF
/
Inventory: 1141
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Width 9.8mm
Length 19.5mm
Height 6.858mm

Technical

Current - Output 2 56mA
Nominal Input Voltage 5V
Total Power Output-Max 1W
Current - Output 1 100mA
Voltage - Output 2 9V
Output Power 500mW
Current - Output (Max) 100mA 56mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 5V
Max Output Current 56mA
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 80%
Number of Outputs 2
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.77Lx0.39W x 0.27 H 19.6mmx9.9mmx6.9mm
Series NMD (1W)
Packaging Tube
Operating Temperature 0°C~70°C

Physical

Number of Pins 7
Package / Case 14-DIP Module, 7 Leads
Mounting Type Through Hole
Mount Through Hole
