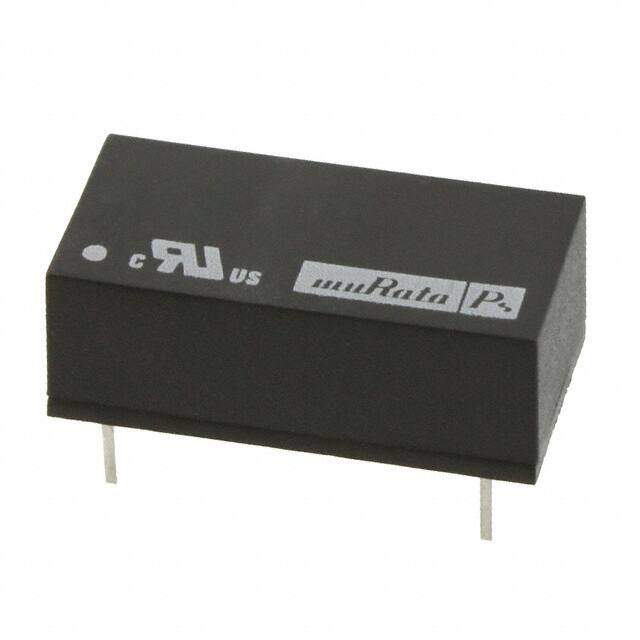

NKA1209DC image
Favorite
NKA1209DC image
Favorite
RoHS
/
Package 14-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters 1W 12V to +/-9V 55mA Dual Output
PDF
/
Inventory: 1370
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
Radiation Hardening No

Dimensions

Height 5.334mm

Technical

Isolation Isolated
Nominal Input Voltage 12V
Total Power Output-Max 1W
Current - Output 1 55mA
Voltage - Output 2 -9V
Output Power 500mW
Current - Output (Max) 56mA 56mA
Trim/Adjustable Output NO
Input Voltage-Nom 12V
Voltage - Input (Min) 10.8V
Voltage - Output 1 9V
Max Output Current 56mA
Output Voltage 9V
Voltage - Input (Max) 13.2V
Voltage - Isolation 3kV
Efficiency 79%
Number of Outputs 2
Depth 9.8mm
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.77Lx0.39W x 0.21 H 19.5mmx9.8mmx5.4mm
Series NKA (1W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 6
Package / Case 14-DIP Module, 6 Leads
Mounting Type Through Hole
Mount Through Hole
