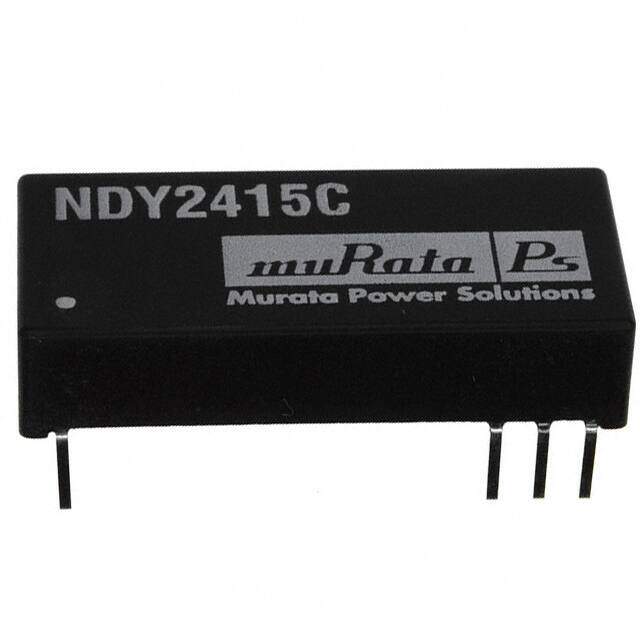

NDY2415C image
Favorite
NDY2415C image
Favorite
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 8 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 3W 24VIN 15VOUT DIP24
PDF
/
Buying Options
Total Price: USD $16.52
Unit Price: USD $16.515311
≥1 USD $16.515311
≥10 USD $15.580485
≥100 USD $14.698574
≥500 USD $13.866575
≥1000 USD $13.081672
Inventory: 1953
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height 7mm

Technical

Min Input Voltage (DC) 18V
Max Input Voltage (DC) 36V
Nominal Output Voltage 15V
Isolation Isolated
Max Output Power 3W
Nominal Input Voltage 24V
Current - Output 1 200mA
Output Power 3W
Output Current 200mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Max Output Current 200mA
Output Voltage 15V
Voltage - Isolation 1kV
Efficiency 82%
Number of Outputs 1
JESD-30 Code R-XDMA-T24
Pin Count 24
Depth 32.26mm
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 3W
Power Rating 3W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Terminal Finish Bright Tin (Sn)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 1.27Lx0.58W x 0.27 H 32.3mmx14.7mmx6.9mm
Series NDY (3W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Number of Pins 8
Package / Case 24-DIP Module, 8 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 15 Weeks
