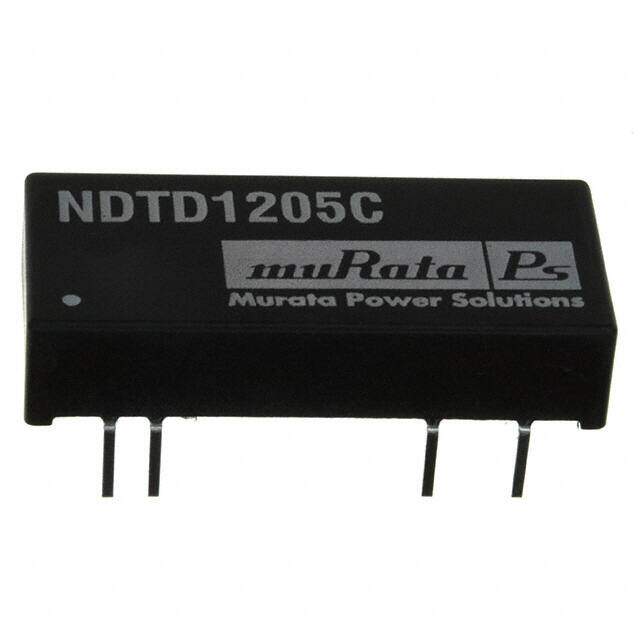

NDTD1205C
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module (600 mil, 8 Leads)
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 3W 12VIN 5VOUT DIP24
PDF
/
Buying Options
Total Price: USD $120.58
Unit Price: USD $120.57685
≥1 USD $120.57685
≥10 USD $116.5574
≥100 USD $104.5
Inventory: 1106
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 24-DIP Module (600 mil, 8 Leads)
Number of Pins 8
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series NDTD (3W)
Size / Dimension 1.27Lx0.58W x 0.27 H 32.3mmx14.7mmx6.9mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Isolated Module
Terminal Finish Tin (Sn)
Applications ITE (Commercial)
Subcategory Other Analog ICs
Power Rating 3W
Max Power Dissipation 3W
Technology HYBRID
Terminal Position DUAL
Number of Functions 1
Depth 14.66mm
Number of Outputs 2
Efficiency 75%
Voltage - Isolation 1kV
Output Voltage 5V
Max Output Current 300mA
Input Voltage-Nom 9V
Trim/Adjustable Output NO
Current - Output (Max) 300mA 300mA
Output Current 300mA
Output Power 3W
Current - Output 1 300mA
Nominal Input Voltage 12V
Max Output Power 3W
Isolation Isolated
Nominal Output Voltage -5V
Current - Output 2 300mA
Max Input Voltage (DC) 18V
Min Input Voltage (DC) 9V
Dimensions
Height 7mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
