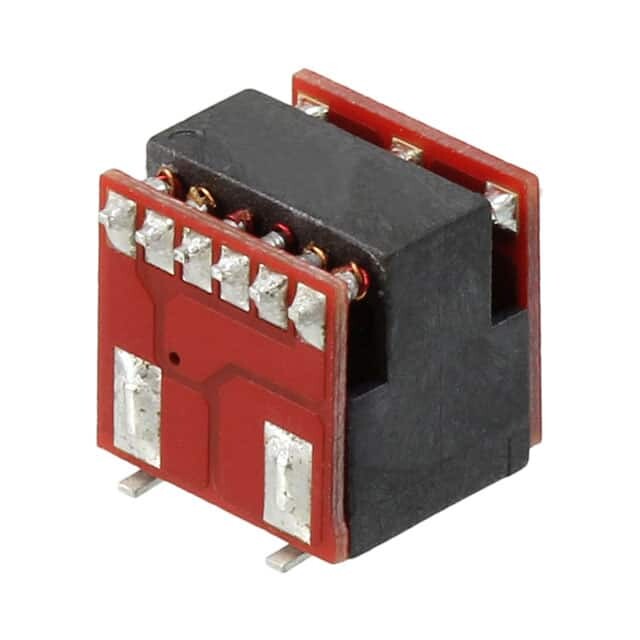

MTU2D0512MC image
Favorite
MTU2D0512MC image
Favorite
RoHS
RoHS RoHS compliant
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-12V 2W
PDF
/
Inventory: 9508
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 8.2mm
Length 8.382mm
Height 8.636mm

Technical

Min Input Voltage (DC) 4.5V
Max Input Voltage (DC) 5.5V
Current - Output 2 -83mA
Max Output Power 2W
Current - Output 1 83mA
Max Input Voltage 5.5V
Min Input Voltage 4.5V
Voltage - Output 2 -12V
Output Power 2W
Current - Output (Max) 83mA 83mA
Voltage - Input (Min) 4.5V
Voltage - Output 1 12V
Max Output Current 83mA
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 85%
Number of Outputs 2
Max Power Dissipation 2W
Power (Watts) 2W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.33Lx0.32W x 0.34 H 8.4mmx8.2mmx8.5mm
Series MTU2 (2W)
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Weight 749.986634mg
Number of Pins 5
Package / Case 6-SMD Module
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
