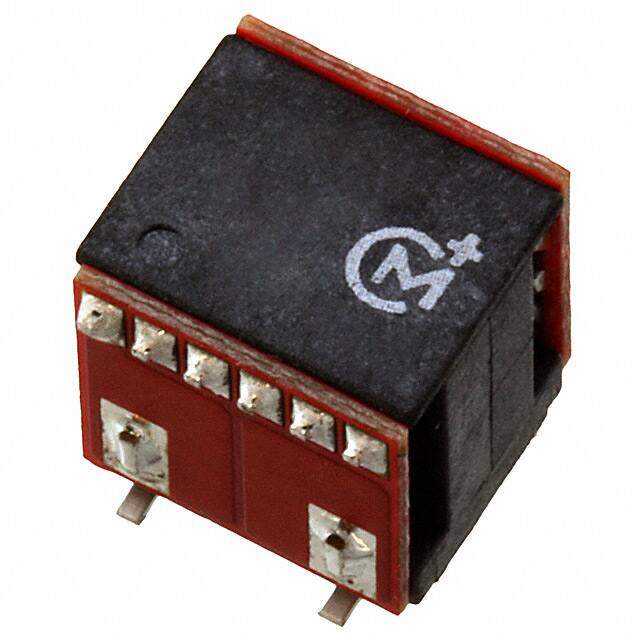

MTU1S1205MC-R
RoHS
RoHS compliant
RoHS compliantPackage 5-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 1W 12Vin 5Vout 200mA SMT Reel
PDF
/
Inventory: 8352
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 5-SMD Module
Number of Pins 5
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series MTU1 (1W)
Size / Dimension 0.33Lx0.32W x 0.34 H 8.4mmx8.2mmx8.5mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Terminal Finish MATTE TIN OVER NICKEL
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Pin Count 5
Number of Outputs 1
Efficiency 84%
Voltage - Isolation 1kV
Voltage - Input (Max) 13.2V
Output Voltage 5V
Max Output Current 200mA
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Output Current 200mA
Output Power 1W
Current - Output 1 200mA
Total Power Output-Max 1W
Nominal Input Voltage 12V
Dimensions
Height 8.636mm
Length 8.2mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
