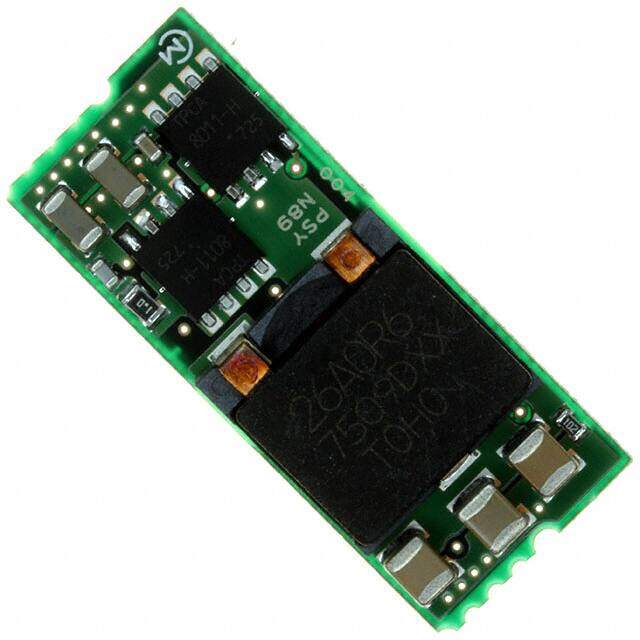

MPDTY402S
RoHS
/
Package 14-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 16A 3-5.5VIN IND STD
PDF
/
Inventory: 4318
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-SMD Module
Number of Pins 14
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series MPD
Size / Dimension 1.30Lx0.53W x 0.31 H 33.0mmx13.5mmx8.0mm
JESD-609 Code e1
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish TIN SILVER COPPER
Applications ITE (Commercial)
Power (Watts) 52W
Max Power Dissipation 52.8W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Reach Compliance Code unknown
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 95%
Voltage - Input (Max) 5.5V
Output Voltage 3.63V
Max Output Current 16A
Voltage - Output 1 0.75V~3.3V
Voltage - Input (Min) 3V
Input Voltage-Nom 5V
Trim/Adjustable Output YES
Output Current 16A
Total Power Output-Max 58.08W
Dimensions
Height 7.874mm
Length 33mm
Compliance
RoHS Status RoHS Compliant
