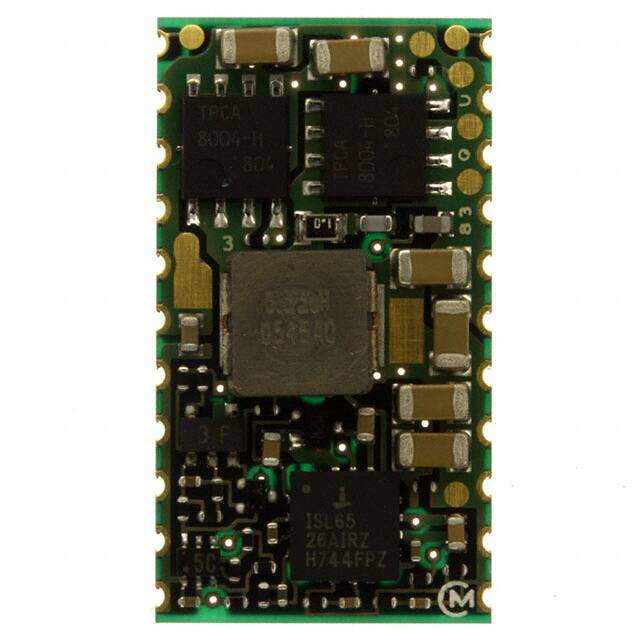

MPDTY312S
RoHS
/
Package 22-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 40W .8-2.5VOUT SMT
PDF
/
Inventory: 9423
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 22-SMD Module
Number of Pins 22
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series MPD
Size / Dimension 1.09Lx0.61W x 0.17 H 27.8mmx15.4mmx4.2mm
Feature Remote On/Off, OTP, SCP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Type Non-Isolated PoL Module
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Power (Watts) 40W
Power Rating 40W
Max Power Dissipation 40W
Depth 15.4mm
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 3.6V
Output Voltage 2.5V
Max Output Current 16A
Voltage - Output 1 0.8V~2.5V
Voltage - Input (Min) 3V
Current - Output (Max) 16A
Output Current 16A
Output Power 40W
Control Features Enable, Active Low
Min Input Voltage 3V
Max Input Voltage 3.6V
Current - Output 1 16A
Isolation Non-Isolated
Dimensions
Height 4.318mm
Length 27.686mm
Width 15.494mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
