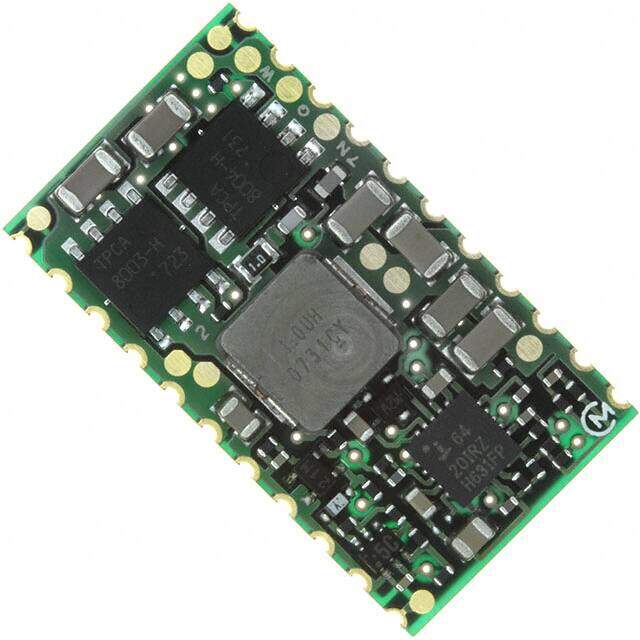

MPDTY303S
RoHS
/
Package 22-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 44W .8-5.5VOUT SMT
PDF
/
Inventory: 6507
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power Rating 44W
Max Power Dissipation 44W
Technology HYBRID
Terminal Position DUAL
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) 265
Number of Functions 1
Terminal Pitch 2.54mm
Depth 15.4mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-X
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 92%
Voltage - Input (Max) 14V
Output Voltage 5.5V
Max Output Current 8A
Voltage - Output 1 0.8V~5.5V
Voltage - Input (Min) 6.5V
Input Voltage-Nom 8V
Trim/Adjustable Output YES
Output Current 8A
Output Power 44W
Control Features Enable, Active Low
Current - Output 1 8A
ECCN Code EAR99
Number of Terminations 22
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Pbfree Code yes
Feature Remote On/Off, OTP, SCP, UVLO
Size / Dimension 1.09Lx0.61W x 0.17 H 27.8mmx15.4mmx4.2mm
Series MPD
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Dimensions
Height 4.318mm
Length 27.8mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Number of Pins 22
Package / Case 22-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
