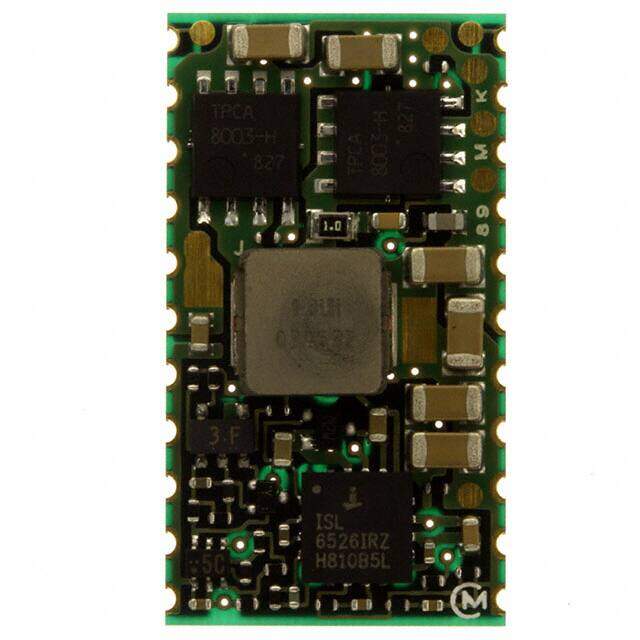

MPDTY302S
RoHS
/
Package 22-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 17.5W .8-2.5VOUT SMT
PDF
/
Inventory: 4243
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 4.318mm
Technical
Isolation Non-Isolated
Current - Output 1 7A
Control Features Enable, Active Low
Output Power 18W
Output Current 7A
Trim/Adjustable Output YES
Input Voltage-Nom 3.3V
Voltage - Input (Min) 3V
Voltage - Output 1 0.8V~2.5V
Max Output Current 7A
Output Voltage 2.5V
Voltage - Input (Max) 3.6V
Efficiency 94%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-X
Reach Compliance Code unknown
Depth 15.4mm
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 18W
Power Rating 17.5W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 22
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Feature Remote On/Off, OTP, SCP, UVLO
Size / Dimension 1.09Lx0.61W x 0.17 H 27.8mmx15.4mmx4.2mm
Series MPD
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Number of Pins 22
Package / Case 22-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
