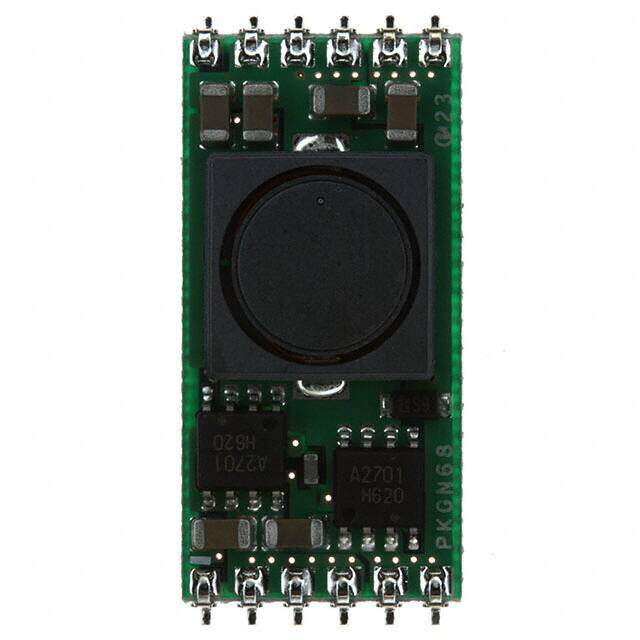

MPDTY123S
RoHS
/
Package 12-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 9W 1.5VOUT 6A SMT
PDF
/
Inventory: 4080
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 6.096mm
Technical
Isolation Non-Isolated
Current - Output 1 6A
Control Features Enable, Active Low
Output Power 9W
Output Current 6A
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 6A
Output Voltage 1.5V
Voltage - Input (Max) 5.5V
Efficiency 93%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XDMA-G
Reach Compliance Code unknown
Depth 31.2mm
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 9W
Power Rating 9W
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 12
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Feature Remote On/Off, SCP
Size / Dimension 1.33Lx0.61W x 0.24 H 33.8mmx15.4mmx6.0mm
Series MPD
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 12
Package / Case 12-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
