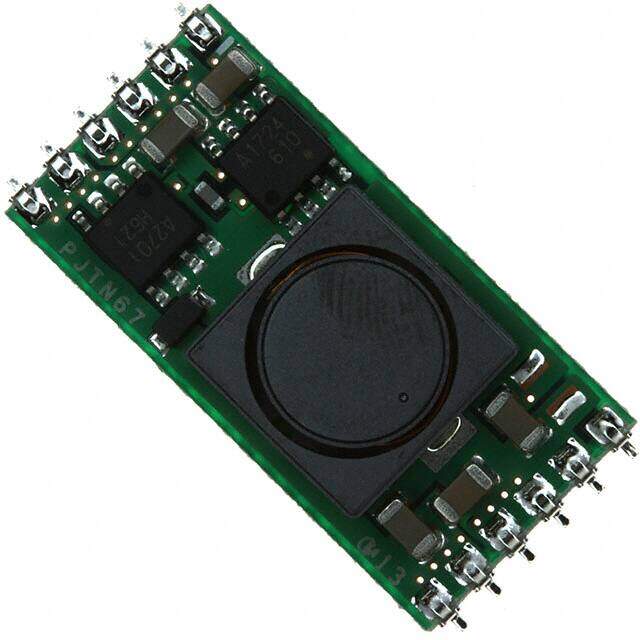

MPDTY113S image
Favorite
MPDTY113S image
Favorite
RoHS
/
Package 12-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description CONV DC/DC 9W 1.5VOUT 6A SMT
PDF
/
Inventory: 7732
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 12-SMD Module
Number of Pins 12

Technical

Operating Temperature -40°C~85°C
Packaging Tray
Series MPD
Size / Dimension 1.33Lx0.61W x 0.24 H 33.8mmx15.4mmx6.0mm
Feature Remote On/Off, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power Rating 9W
Max Power Dissipation 9W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Depth 31.2mm
Reach Compliance Code unknown
JESD-30 Code R-XDMA-G
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 93%
Voltage - Input (Max) 3.63V
Output Voltage 1.5V
Max Output Current 6A
Voltage - Input (Min) 3V
Input Voltage-Nom 3.3V
Trim/Adjustable Output NO
Output Current 6A
Output Power 9W
Control Features Enable, Active Low
Current - Output 1 6A

Dimensions

Height 6.096mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
