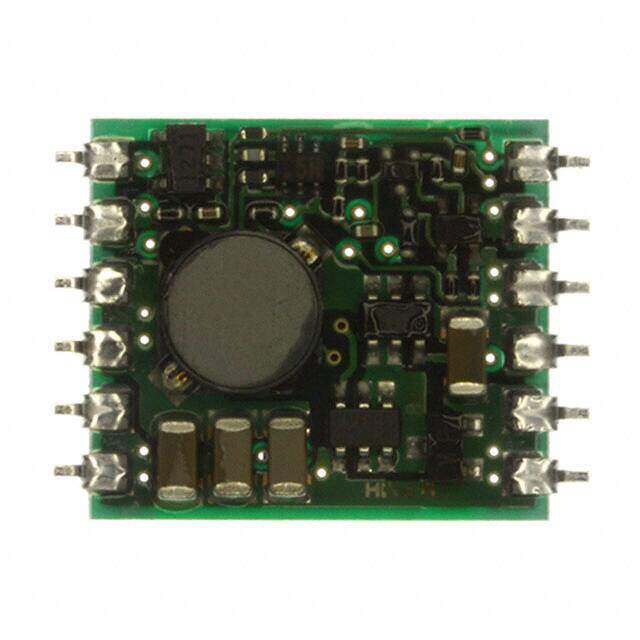

MPDTY102S
RoHS
/
Package 12-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 10W .8-5VOUT 2A SMT
PDF
/
Inventory: 5253
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 12-SMD Module
Number of Pins 12
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series MPD
Size / Dimension 0.65Lx0.74W x 0.17 H 16.4mmx18.7mmx4.2mm
Feature Remote On/Off, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power Rating 10W
Max Power Dissipation 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Depth 21.3mm
Reach Compliance Code unknown
JESD-30 Code R-XDMA-G
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 93%
Voltage - Input (Max) 5.5V
Output Voltage 5V
Max Output Current 2A
Voltage - Output 1 0.8V~5V
Voltage - Input (Min) 2.97V
Input Voltage-Nom 3.3V
Trim/Adjustable Output YES
Output Current 2A
Output Power 10W
Control Features Enable, Active Low
Current - Output 1 2A
Dimensions
Height 4.318mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
