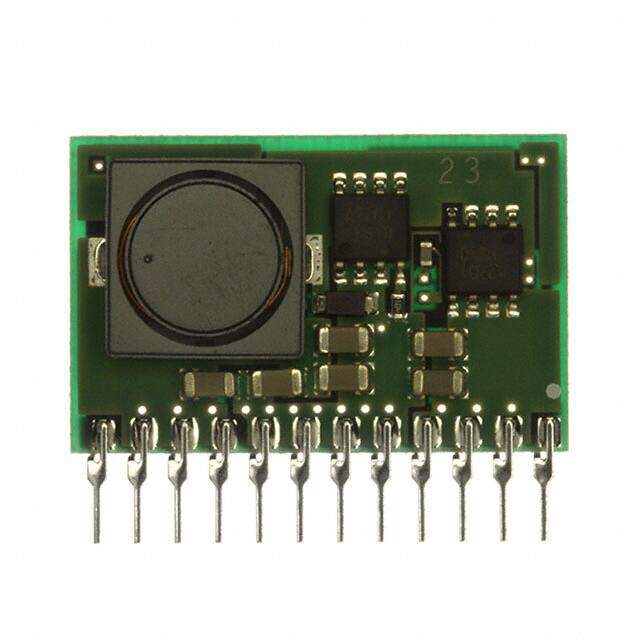

MPDTY023S
RoHS
/
Package 12-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 9W 1.5VOUT 6A SIP
PDF
/
Inventory: 9035
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 12-SIP Module
Number of Pins 12
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series MPDTY
Size / Dimension 1.30Lx0.23W x 0.94 H 33.0mmx5.8mmx24.0mm
Feature UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 12
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power Rating 9W
Max Power Dissipation 9W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Depth 5.8mm
Reach Compliance Code unknown
JESD-30 Code R-PSMA-T
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 93%
Voltage - Input (Max) 5.5V
Output Voltage 1.5V
Max Output Current 6A
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 6A
Output Power 9W
Current - Output 1 6A
Isolation Non-Isolated
Dimensions
Height 23.876mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
