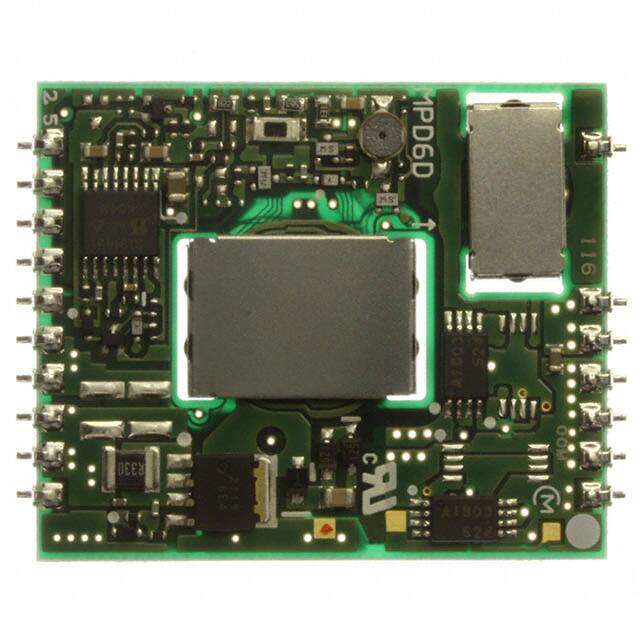

MPD6D116S
RoHS
/
Package 20-SMD Module, 17 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 15W 2.5VOUT 4.5A SMT
PDF
/
Inventory: 3540
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 20-SMD Module, 17 Leads
Number of Pins 17
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series MPD
Size / Dimension 1.47Lx1.23W x 0.17 H 37.3mmx31.2mmx4.2mm
Feature Remote On/Off, OCP, OTP, OVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2 (1 Year)
Number of Terminations 17
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 15W
Power Rating 11W
Max Power Dissipation 15W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
Depth 37.3mm
Reach Compliance Code unknown
Pin Count 17
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 88%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 2.5V
Max Output Current 4.5A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Output Current 4.5A
Output Power 11.3W
Control Features Enable, Active Low
Isolation Isolated
Dimensions
Height 4.318mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
