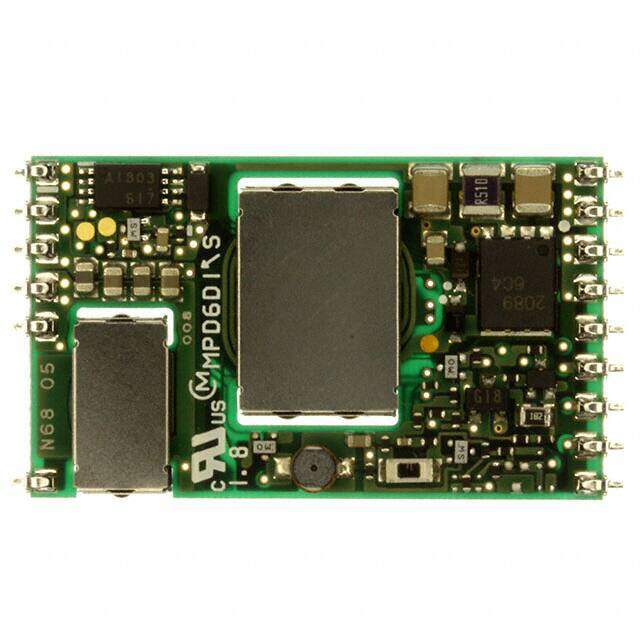

MPD6D105S
RoHS
/
Package 18-SMD Module, 15 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 10W 2.0VOUT 3A SMT
PDF
/
Buying Options
Total Price: USD $49.31
Unit Price: USD $49.313837
≥1 USD $49.313837
≥210 USD $19.676432
≥420 USD $19.018669
≥1050 USD $18.694383
Inventory: 3322
Minimum: 1
-
+
Technical Details
Technical
Number of Functions 1
Terminal Pitch 2.54mm
Depth 37.3mm
Reach Compliance Code unknown
Pin Count 15
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 86%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 2V
Max Output Current 3A
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Output Current 3A
Output Power 6W
Control Features Enable, Active Low
Total Power Output-Max 6W
Isolation Isolated
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 10W
Power Rating 6W
Power (Watts) 10W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 15
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Feature Remote On/Off, OCP, OVP
Size / Dimension 1.47Lx0.88W x 0.17 H 37.3mmx22.4mmx4.2mm
Series MPD
Packaging Tray
Operating Temperature -40°C~85°C
Dimensions
Height 4.318mm
Width 22.4mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Number of Pins 15
Package / Case 18-SMD Module, 15 Leads
Mounting Type Surface Mount
Mount Surface Mount
