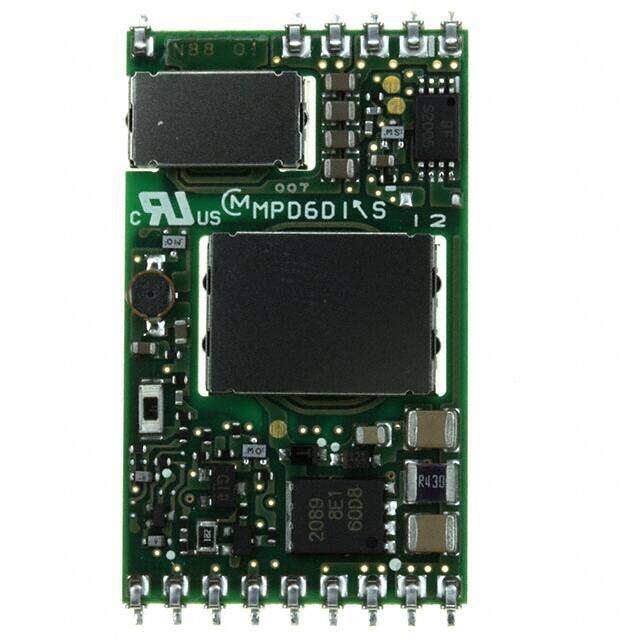

MPD6D101S
RoHS
/
Package 18-SMD Module, 15 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC 10W 12VOUT .8A SMT
PDF
/
Inventory: 1440
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 18-SMD Module, 15 Leads
Number of Pins 15
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series MPD
Size / Dimension 1.47Lx0.88W x 0.17 H 37.3mmx22.4mmx4.2mm
Feature Remote On/Off, OCP, OVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 15
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 10W
Power Rating 9.5W
Max Power Dissipation 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Number of Functions 1
Terminal Pitch 2.54mm
Depth 37.3mm
Pin Count 15
Number of Outputs 1
Efficiency 88%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 12V
Max Output Current 800mA
Voltage - Input (Min) 36V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Output Current 800mA
Output Power 9.6W
Control Features Enable, Active Low
Dimensions
Height 4.318mm
Width 22.4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
