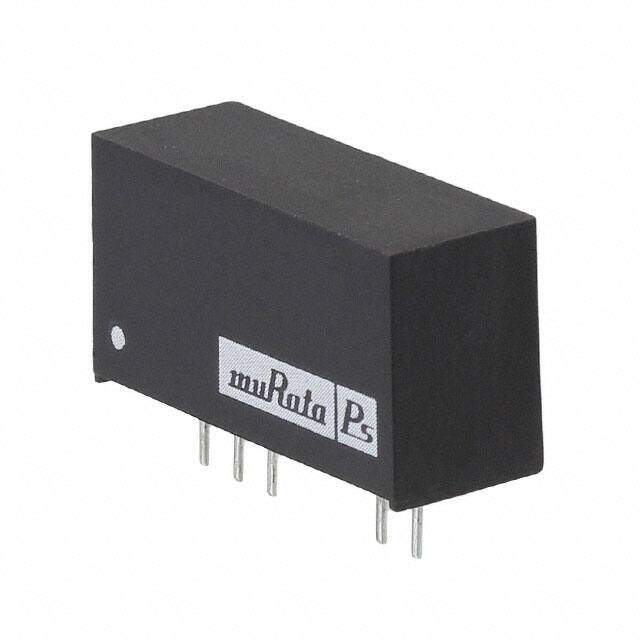

MEV1D0515SC
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 1W
PDF
/
Buying Options
Total Price: USD $5.96
Unit Price: USD $5.9576
≥1 USD $5.9576
≥10 USD $5.9312
≥100 USD $5.8872
≥500 USD $5.8168
≥1000 USD $5.676
≥3000 USD $5.3944
Inventory: 878
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Number of Pins 5
Weight 2.5g
Technical
Operating Temperature -40°C~85°C
Packaging Tube
Series MEV1 (1W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.7mmx6.2mmx10.2mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Power Rating 1W
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Depth 6.15mm
Pin Count 7/5
Number of Outputs 2
Efficiency 88%
Voltage - Isolation 3kV
Output Voltage 15V
Max Output Current 33mA
Operating Supply Voltage 5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 33mA 33mA
Output Current 33mA
Output Power 1W
Current - Output 1 33mA
Nominal Input Voltage 5V
Max Output Power 1W
Isolation Isolated
Nominal Output Voltage -15V
Current - Output 2 -33mA
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V
Dimensions
Height 6.096mm
Length 19.4mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
