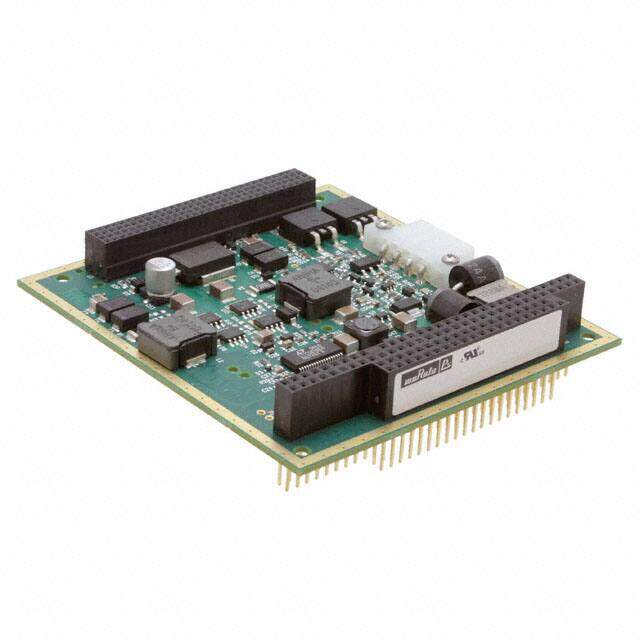

MAPC-104-C
RoHS
/
Package Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CNVRTR 3.3V 5.1V 12V 46W
PDF
/
Inventory: 4524
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series MAPC-104 (46W)
Size / Dimension 3.78Lx3.55W x 0.69 H 95.9mmx90.2mmx17.5mm
Feature OCP, OTP, OVP, SCP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power Rating 46W
Max Power Dissipation 46W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 90.17mm
Pin Count 4
JESD-30 Code R-XXMA-X4
Number of Outputs 3
Efficiency 92.5%
Voltage - Input (Max) 32V
Output Voltage 3.3V
Max Output Current 6.3A
Voltage - Input (Min) 9V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Current - Output (Max) 6A 6.3A 100mA
Output Current 6A
Output Power 46W
Voltage - Output 2 5.1V
Current - Output 1 6A
Nominal Input Voltage 24V
Voltage - Output 3 12V
Isolation Non-Isolated
Current - Output 2 6.3A
Dimensions
Height 17.526mm
Length 95.86mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
