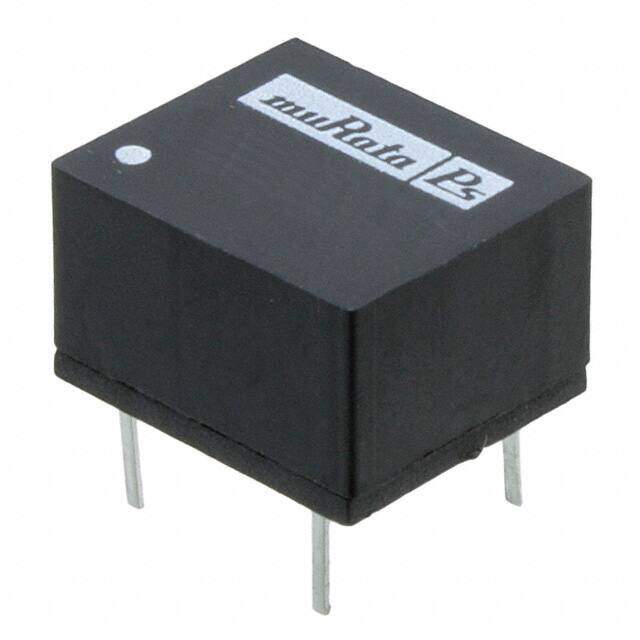

LME0509DC
RoHS
/
Package 7-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters TH0.25W5-9 VSIP
PDF
/
Inventory: 1225
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 9.906mm
Technical
Nominal Input Voltage 5V
Total Power Output-Max 0.25W
Current - Output 1 28mA
Output Power 250mW
Output Current 28mA
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 28mA
Output Voltage 9V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 75%
Number of Outputs 1
JESD-30 Code R-XDMA-P4
Pin Count 7/4
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 250mW
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature SCP
Size / Dimension 0.45Lx0.24W x 0.39 H 11.5mmx6.0mmx10.0mm
Series LME (0.25W)
Packaging Tube
Operating Temperature 0°C~70°C
Physical
Number of Pins 8
Package / Case 7-DIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
