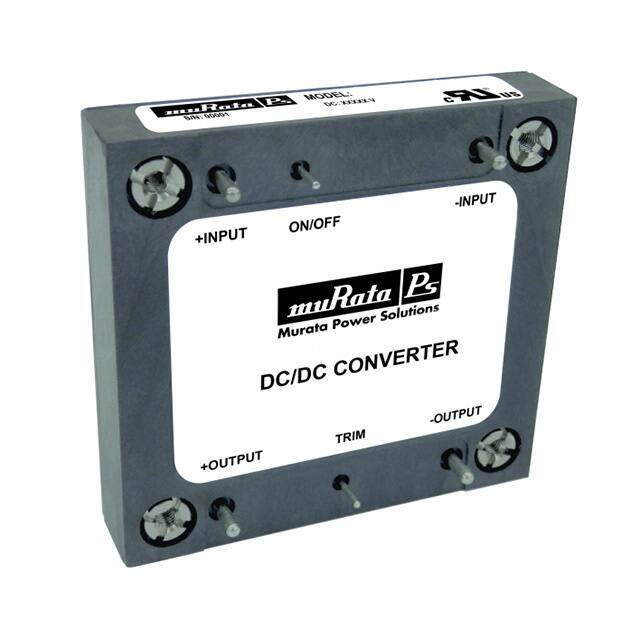

ICH0141V1NC
RoHS
/
Package Half Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 492W
PDF
/
Inventory: 7933
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Half Brick
Supplier Device Package Half Brick
Technical
Operating Temperature -40°C~105°C With Derating
Series ICH 500 (500W)
Size / Dimension 2.50Lx2.40W x 0.52 H 63.5mmx61.0mmx13.2mm
Feature Remote On/Off, OCP, OTP, OVP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 492W
Number of Outputs 1
Efficiency 94.6%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Input (Min) 9V
Current - Output (Max) 41A
