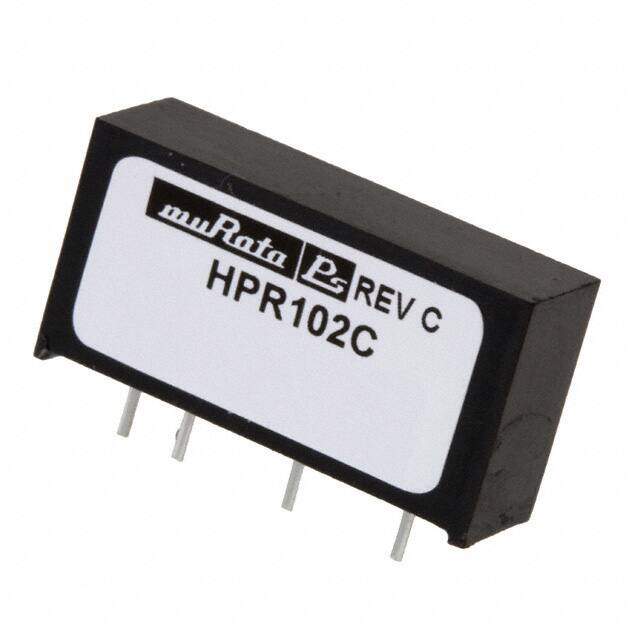

HPR102C
RoHS
/
Package 6-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters .75W 5V to 15V 50mA Single Output
PDF
/
Inventory: 1197
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads
Number of Pins 4
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Series HPR1xxC (0.75W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.6mmx6.1mmx10.2mm
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Depth 6.09mm
Pin Count 6/4
Number of Outputs 1
Efficiency 71%
Voltage - Isolation 750V
Voltage - Input (Max) 5.5V
Output Voltage 15V
Max Output Current 50mA
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 50mA
Output Power 750mW
Current - Output 1 50mA
Total Power Output-Max 0.75W
Nominal Input Voltage 5V
Isolation Isolated
Dimensions
Height 10.16mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
