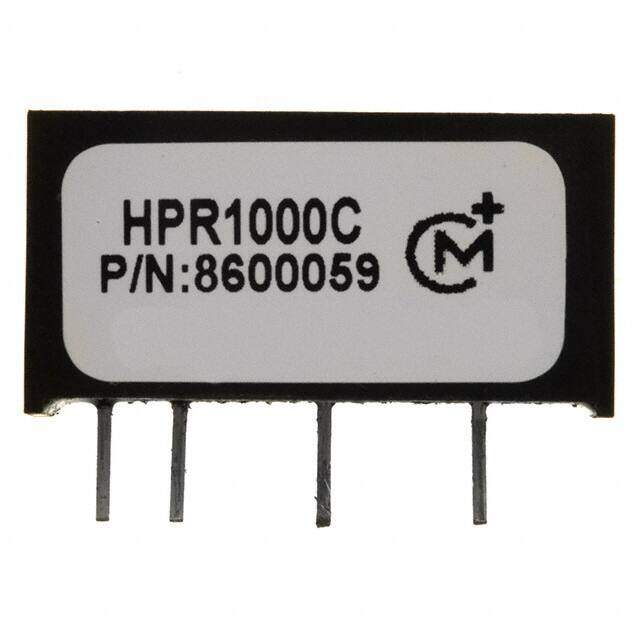

HPR1000C
RoHS
/
Package 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
CONVERTER, DC/DC, 1W UNREG
PDF
/
Buying Options
Total Price: USD $3.59
Unit Price: USD $3.5948
≥1 USD $3.5948
≥10 USD $2.94975
≥100 USD $2.8576
≥500 USD $2.76545
≥1000 USD $2.6733
Inventory: 25007
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Number of Pins 4
Technical
Operating Temperature -25°C~65°C
Packaging Tube
Series HPR10xxC (1W)
Size / Dimension 0.77Lx0.24W x 0.40 H 19.6mmx6.1mmx10.2mm
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power Rating 1W
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Depth 6.09mm
Pin Count 6/5
JESD-30 Code R-PSIP-T5
Number of Outputs 1
Efficiency 68%
Voltage - Isolation 1kV
Output Voltage 5V
Max Output Current 200mA
Operating Supply Voltage 5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Current 200mA
Output Power 1W
Current - Output 1 200mA
Nominal Input Voltage 5V
Max Output Power 1W
Isolation Isolated
Nominal Output Voltage 5V
Max Input Voltage (DC) 5.5V
Min Input Voltage (DC) 4.5V
Dimensions
Height 10.16mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
