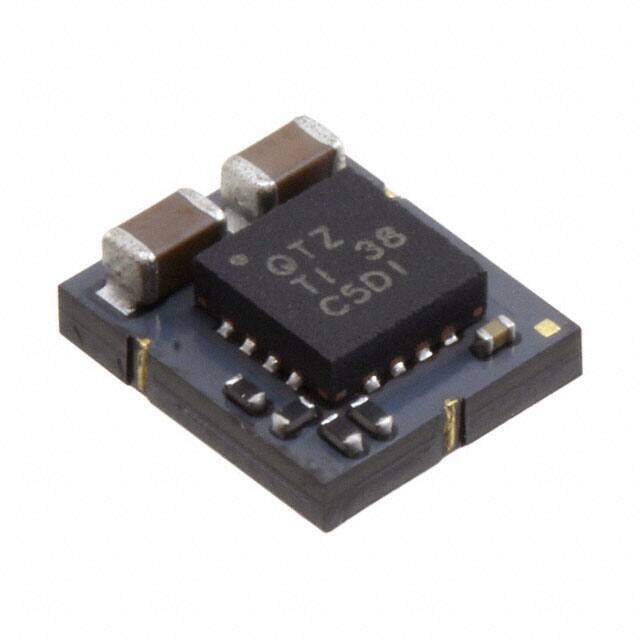

LXDC55FAAA-203
RoHS
/
Package 14-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTR 0.8-5.3V 1.5A SMD
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 14-SMD Module
Number of Pins 14
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Size / Dimension 0.20Lx0.22W x 0.08 H 5.0mmx5.7mmx2.1mm
Feature OCP, OTP, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 14
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Number of Outputs 1
Efficiency 87%
Output Voltage 5.3V
Max Output Current 1.5A
Voltage - Output 1 0.8V~5.3V
Operating Supply Voltage 14V
Voltage - Input (Min) 4V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Control Features Enable, Active High
Current - Output 1 1.5A
Switching Frequency 2.5MHz
Dimensions
Height 2.032mm
Length 5.7mm
Width 5mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
