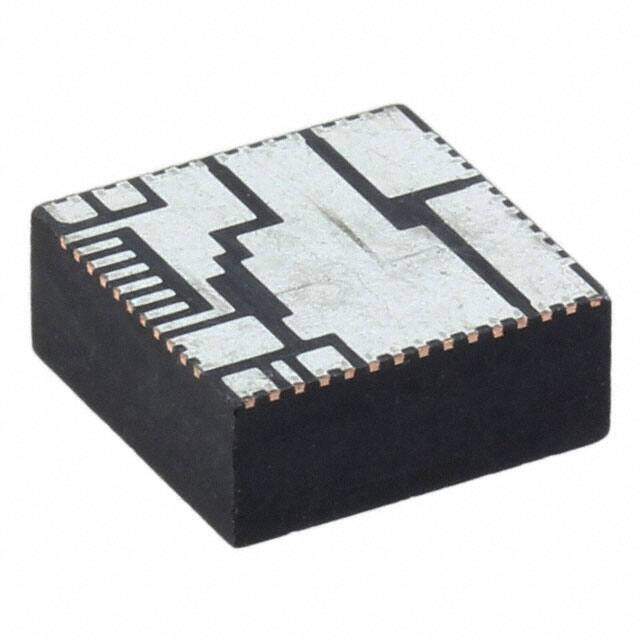

MIC45208-1YMP-T1
RoHS
RoHS compliant
RoHS compliantPackage 52-PowerBQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
MICROCHIP MIC45208-1YMP-T1 DC-DC Switching Buck Step Down Regulator, Adjustable, 4.5V-26Vin, 800mV-5.5Vout, 10Aout, QFN-52
PDF
/
Buying Options
Total Price: USD $53.7
Unit Price: USD $53.6959
≥1 USD $53.6959
≥10 USD $44.05815
≥100 USD $42.6816
≥500 USD $41.30505
≥1000 USD $39.92755
Inventory: 1160
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 4.064mm
Technical
Switching Frequency 600kHz
Min Output Voltage 800mV
Max Output Voltage 5.5V
Output Current 10A
Voltage - Input (Min) 4.5V
Voltage - Output 1 0.8V~5.5V
Max Output Current 10A
Output Voltage 5.5V
Voltage - Input (Max) 26V
Efficiency 93%
Number of Outputs 1
Base Part Number MIC45208
Time@Peak Reflow Temperature-Max (s) 30
Peak Reflow Temperature (Cel) 260
Applications ITE (Commercial)
Terminal Finish Matte Tin (Sn)
Type Non-Isolated PoL Module
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Discontinued
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, SCP
JESD-609 Code e3
Size / Dimension 0.39Lx0.39W x 0.16 H 10.0mmx10.0mmx4.0mm
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Number of Pins 52
Package / Case 52-PowerBQFN Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 5 Weeks
