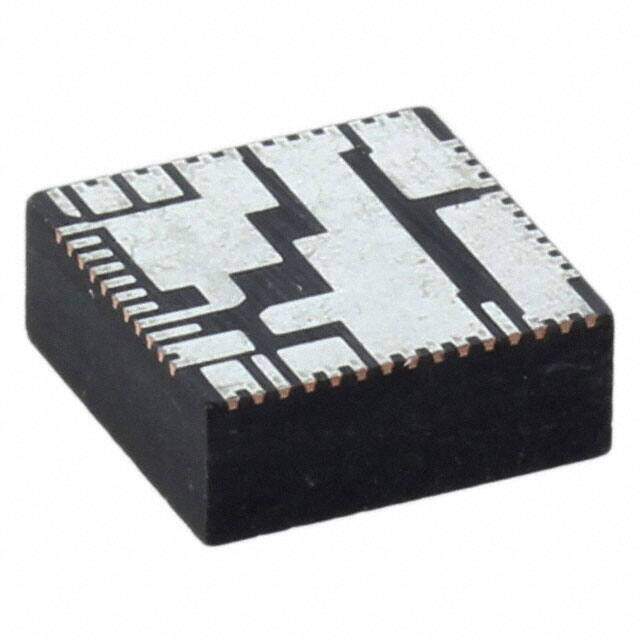

MIC45205-1YMP-T1
RoHS
RoHS compliant
RoHS compliantPackage 52-PowerBFQFN
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-5.5V 33W
PDF
/
Inventory: 1576
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 52-PowerBFQFN
Number of Pins 52
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2015
Size / Dimension 0.31Lx0.31W x 0.12 H 8.0mmx8.0mmx3.0mm
Feature Remote On/Off, OCP, OTP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Base Part Number MIC45205
Number of Outputs 1
Efficiency 93%
Voltage - Input (Max) 26V
Output Voltage 5.5V
Max Output Current 6A
Voltage - Output 1 0.8V~5.5V
Voltage - Input (Min) 4.5V
Output Current 6A
Max Output Voltage 5.5V
Min Output Voltage 800mV
Switching Frequency 600kHz
Dimensions
Height 3.048mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
