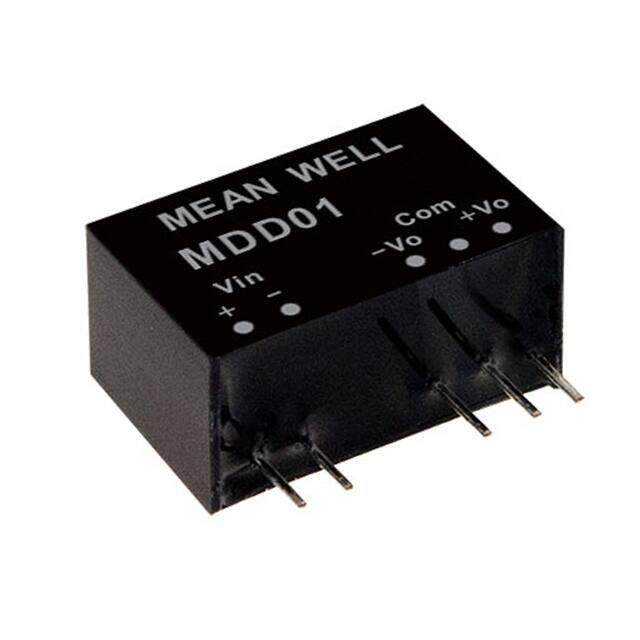

MDD01L-09 image
Favorite
MDD01L-09 image
Favorite

MDD01L-09

MEAN WELL USA Inc.
RoHS
RoHS RoHS compliant
Package 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-9V 1W
PDF
/
Inventory: 3312
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads

Technical

Operating Temperature -40°C~85°C
Packaging Tube
Series MDD01 (1W)
Size / Dimension 0.77Lx0.39W x 0.49 H 19.5mmx9.8mmx12.5mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications Medical
Power (Watts) 1W
Number of Outputs 2
Efficiency 81%
Voltage - Isolation 6000V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Voltage - Input (Min) 4.5V
Current - Output (Max) 56mA 56mA
Voltage - Output 2 -9V

Compliance

RoHS Status ROHS3 Compliant
