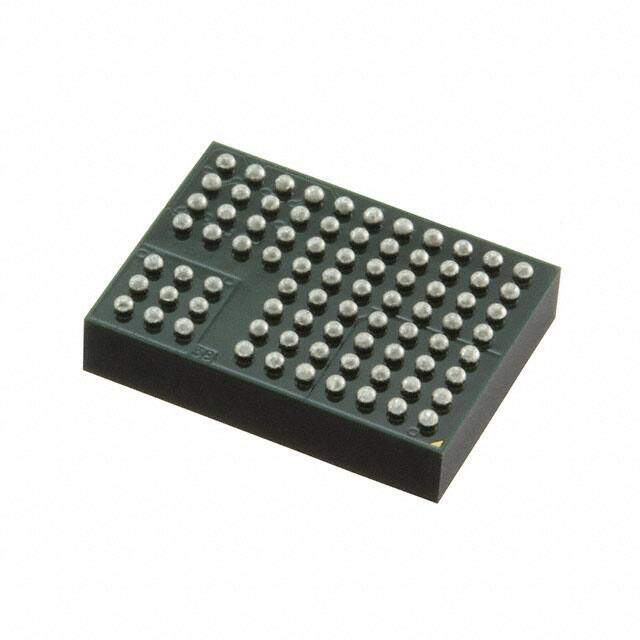

LTM8052EY#PBF image
Favorite
LTM8052EY#PBF image
Favorite
RoHS
RoHS RoHS compliant
Package 81-BBGA Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 1.2-24V 5A
PDF
/
Buying Options
Total Price: USD $28.01
Unit Price: USD $28.0104
≥1 USD $28.0104
≥10 USD $24.89168
≥100 USD $23.222496
≥500 USD $21.77113
≥1000 USD $20.319754
Inventory: 237
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mounting Type Surface Mount
Package / Case 81-BBGA Module
Surface Mount YES

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Published 2011
Series μModule?
Size / Dimension 0.59Lx0.44W x 0.11 H 15.0mmx11.3mmx2.8mm
JESD-609 Code e1
Feature OCP, OTP, OVP
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 81
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LTM8052
Pin Count 81
Number of Outputs 1
Voltage - Input (Max) 36V
Voltage - Output 1 1.2V~24V
Voltage - Input (Min) 6V
Input Voltage-Nom 12V
Current - Output (Max) 5A
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK

Dimensions

Height Seated (Max) 3.62mm

Compliance

RoHS Status ROHS3 Compliant
