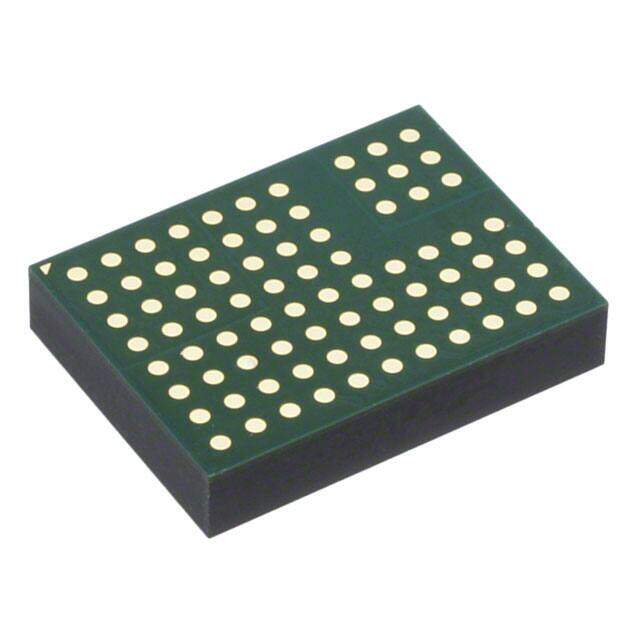

LTM8052AMPV#PBF
RoHS
RoHS compliant
RoHS compliantPackage 81-BLGA Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.2-24V 120W
PDF
/
Buying Options
Total Price: USD $40.27
Unit Price: USD $40.2724
≥1 USD $40.2724
≥10 USD $33.04385
≥100 USD $32.0112
≥500 USD $30.97855
≥1000 USD $29.9459
Inventory: 24
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 81-BLGA Module
Surface Mount YES
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2011
Series μModule?
Size / Dimension 0.59Lx0.44W x 0.11 H 15.0mmx11.3mmx2.8mm
JESD-609 Code e4
Feature OTP, OVP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 81
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Gold (Au)
Applications ITE (Commercial)
Terminal Position BOTTOM
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number LTM8052
Pin Count 81
Number of Outputs 1
Voltage - Input (Max) 36V
Voltage - Output 1 1.2V~24V
Voltage - Input (Min) 6V
Input Voltage-Nom 12V
Current - Output (Max) 5A
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Dimensions
Height Seated (Max) 2.92mm
Compliance
RoHS Status ROHS3 Compliant
