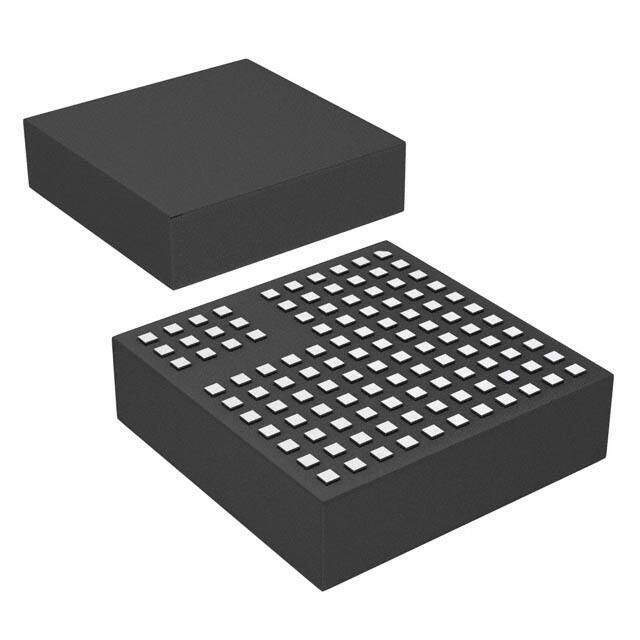

LTM8027IY#PBF
RoHS
RoHS compliant
RoHS compliantPackage 113-BBGA Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 2.5-24V 4A
PDF
/
Buying Options
Total Price: USD $36.16
Unit Price: USD $36.1592
≥1 USD $36.1592
≥10 USD $32.22296
≥100 USD $30.30368
≥500 USD $28.28342
≥1000 USD $27.273268
Inventory: 1129
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status PRODUCTION (Last Updated: 3 weeks ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 113-BBGA Module
Number of Pins 113
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2014
Series μModule?
Size / Dimension 0.59Lx0.59W x 0.17 H 15.0mmx15.0mmx4.3mm
JESD-609 Code e1
Feature SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 113
Type Non-Isolated PoL Module
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications ITE (Commercial)
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LTM8027
Pin Count 113
Number of Outputs 1
Efficiency 95%
Voltage - Input (Max) 60V
Output Voltage 2.5V
Output Type Adjustable
Max Output Current 4A
Voltage - Output 1 2.5V~24V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 20V
Output Current 4A
Max Output Voltage 24V
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Min Output Voltage 2.5V
Switcher Configuration BUCK
Switching Frequency 500kHz
Dimensions
Height 4.318mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
