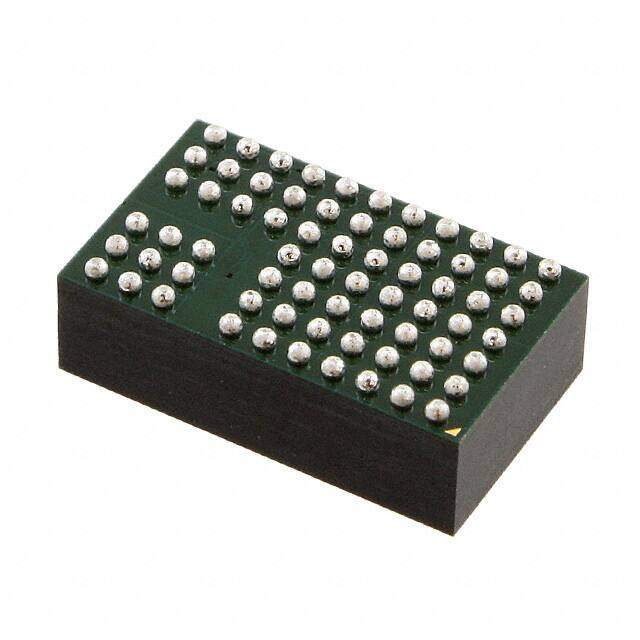

LTM8025EY#PBF
RoHS
RoHS compliant
RoHS compliantPackage 70-BBGA Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-24V 72W
PDF
/
Inventory: 1446
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 70-BBGA Module
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2013
Series μModule?
Size / Dimension 0.59Lx0.35W x 0.19 H 15.0mmx9.0mmx4.9mm
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 70
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 24V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number LTM8025
Pin Count 70
JESD-30 Code R-PBGA-B70
Number of Outputs 1
Voltage - Input (Max) 36V
Voltage - Output 1 0.8V~24V
Voltage - Input (Min) 3.6V
Input Voltage-Nom 12V
Current - Output (Max) 3A
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Switching Frequency-Max 2400kHz
Dimensions
Width 9mm
Compliance
RoHS Status ROHS3 Compliant
