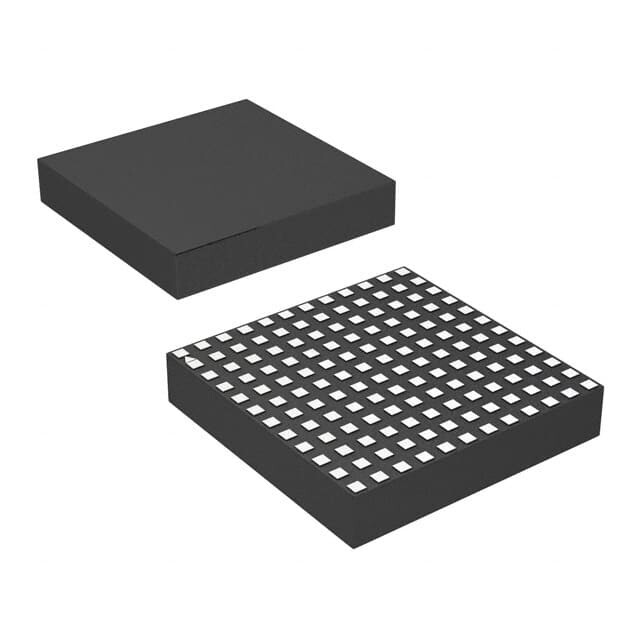

LTM4628EV#PBF
RoHS
RoHS compliant
RoHS compliantPackage 144-BLGA Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CNVRTR 0.6-5.5V 0.6-5.5V
PDF
/
Buying Options
Total Price: USD $33.83
Unit Price: USD $33.8272
≥1 USD $33.8272
≥10 USD $33.56496
≥100 USD $33.30536
≥500 USD $32.784576
≥1000 USD $31.2235
≥3000 USD $28.621595
Inventory: 941
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 144-BLGA Module
Surface Mount YES
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Published 2012
Series μModule?
Size / Dimension 0.59Lx0.59W x 0.17 H 15.0mmx15.0mmx4.3mm
JESD-609 Code e3
Feature OCP, OVP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 144
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Matte Tin (Sn)
Applications ITE (Commercial)
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6V TO 5.5V
Subcategory Switching Regulator or Controllers
Technology BIPOLAR
Terminal Position BOTTOM
Terminal Form BUTT
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number LTM4628
Pin Count 144
JESD-30 Code S-PBGA-B144
Number of Outputs 2
Qualification Status Not Qualified
Voltage - Input (Max) 26.5V
Output Voltage 1.5V
Voltage - Output 1 0.6V~5.5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Current - Output (Max) 8A 8A
Voltage - Output 2 0.6V~5.5V
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration PHASE-SHIFT
Switching Frequency-Max 780kHz
Dimensions
Length 15mm
Width 15mm
Compliance
RoHS Status ROHS3 Compliant
