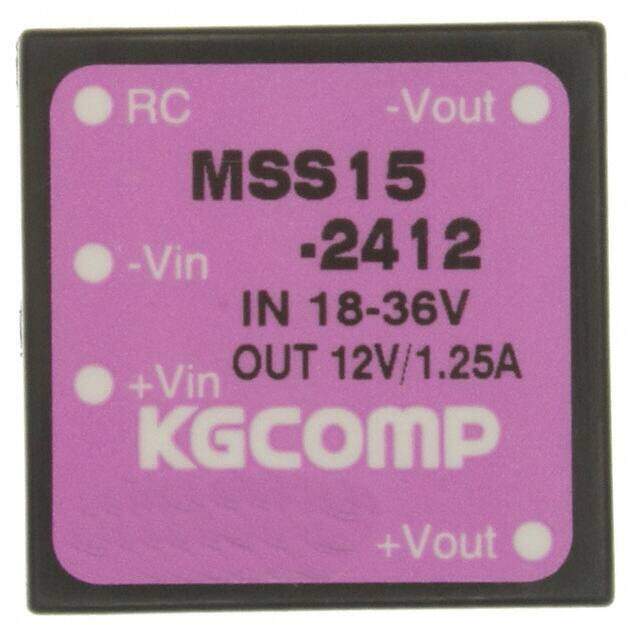

MSS15-2412
RoHS
/
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 15W
PDF
/
Inventory: 9410
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 5-DIP Module
Technical
Operating Temperature -20°C~60°C
Packaging Tube
Series MS (15W)
Size / Dimension 1.00Lx1.00W x 0.39 H 25.4mmx25.4mmx9.9mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 15W
Reach Compliance Code unknown
Number of Outputs 1
Efficiency 86%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Input (Min) 18V
Current - Output (Max) 1.25A
