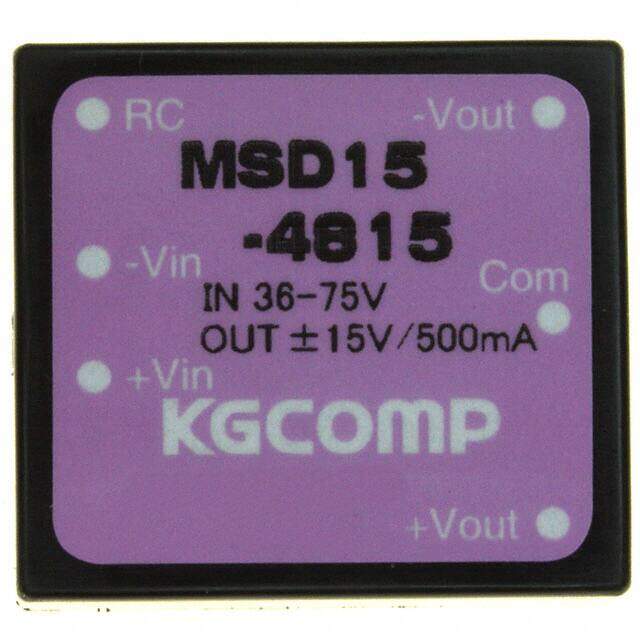

MSD15-4815
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 15W
PDF
/
Inventory: 9644
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Technical
Operating Temperature -25°C~71°C
Packaging Tube
Series MS (15W)
Size / Dimension 1.10Lx1.00W x 0.39 H 27.9mmx25.4mmx9.9mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 15W
Number of Outputs 2
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Input (Min) 36V
Current - Output (Max) 500mA 500mA
Voltage - Output 2 -15V
