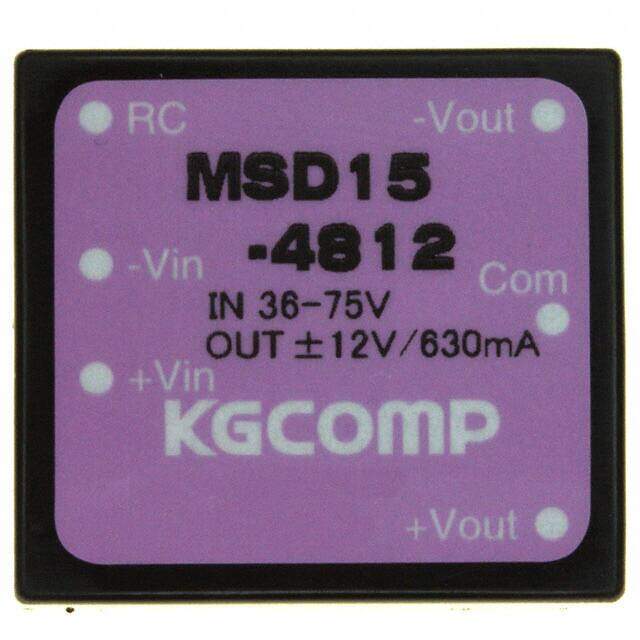

MSD15-4812
RoHS
/
Package 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 15W
PDF
/
Inventory: 4722
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Voltage - Output 2 -12V
Current - Output (Max) 600mA 600mA
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Number of Outputs 2
Power (Watts) 15W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 1.10Lx1.00W x 0.39 H 27.9mmx25.4mmx9.9mm
Series MS (15W)
Packaging Tube
Operating Temperature -25°C~71°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Alternative Model
