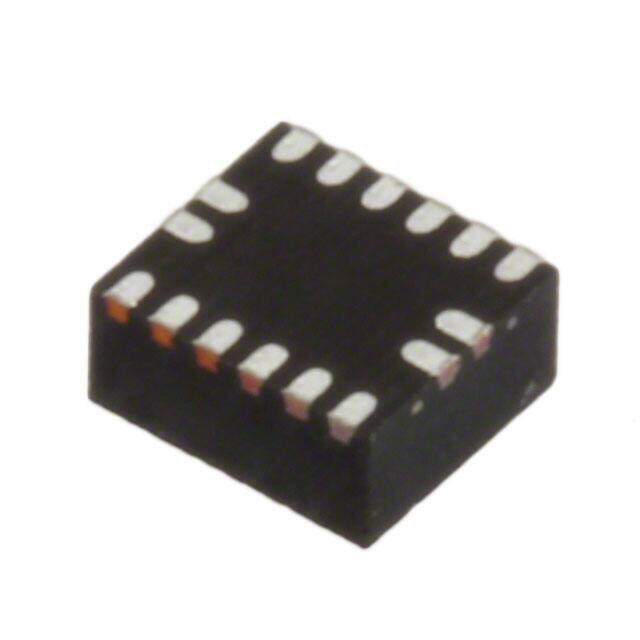

EP53A7HQI
RoHS
RoHS compliant
RoHS compliantPackage 16-PowerTFQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 1.8-3.3V 3W
PDF
/
Buying Options
Total Price: USD $14.77
Unit Price: USD $14.7668
≥1 USD $14.7668
≥10 USD $12.1163
≥100 USD $11.7382
≥500 USD $11.35915
≥1000 USD $10.9801
Inventory: 1163
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 16-PowerTFQFN Module
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Published 2013
Series Enpirion? 5300
Size / Dimension 0.12Lx0.12W x 0.04 H 3.0mmx3.0mmx1.1mm
JESD-609 Code e3
Feature Remote On/Off, OCP, OTP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 16
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Matte Tin (Sn)
Applications ITE (Commercial)
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 10
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 5.5V
Voltage - Output 1 1.8V~3.3V
Voltage - Input (Min) 2.4V
Input Voltage-Nom 3.6V
Current - Output (Max) 1A
Control Features Enable, Active High
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Switching Frequency-Max 5000kHz
Dimensions
Length 3mm
Width 3mm
Compliance
RoHS Status RoHS Compliant
