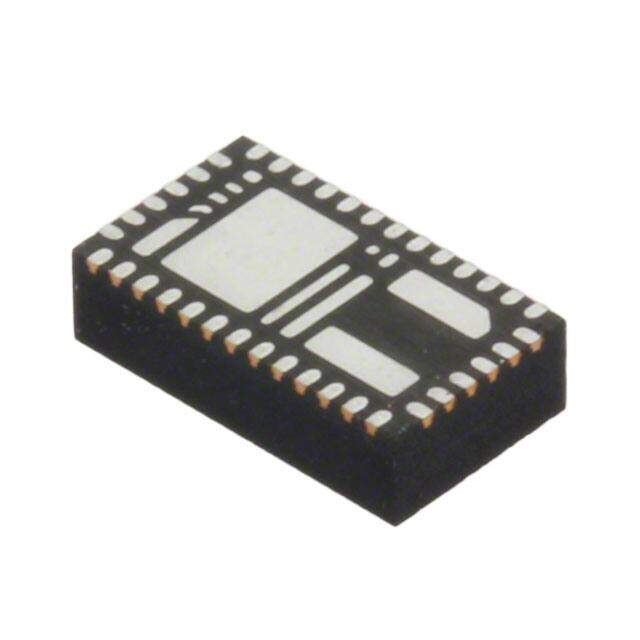

EN6337QI
RoHS
RoHS compliant
RoHS compliantPackage 38-FQFN Exposed Pad
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.6-6.285V
PDF
/
Buying Options
Total Price: USD $15.57
Unit Price: USD $15.5724
≥1 USD $15.5724
≥10 USD $12.7775
≥100 USD $12.37755
≥500 USD $11.97855
≥1000 USD $11.57955
≥3000 USD $10.3816
Inventory: 9907
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 7mm
Technical
Switching Frequency-Max 2300kHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Control Mode VOLTAGE-MODE
Control Features Enable, Active High
Current - Output (Max) 3A
Input Voltage-Nom 5V
Voltage - Input (Min) 2.5V
Voltage - Output 1 0.6V~6.285V
Voltage - Input (Max) 6.6V
Efficiency 95%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XQCC-N38
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 0.5mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Subcategory Switching Regulator or Controllers
Additional Feature OPERATES IN ADJUSTABLE MODE FROM 0.6V TO 6.285V
Applications ITE (Commercial)
Terminal Finish Matte Tin (Sn) - annealed
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 38
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, SCP, UVLO
JESD-609 Code e3
Size / Dimension 0.28Lx0.16W x 0.07 H 7.0mmx4.0mmx1.9mm
Series Enpirion?
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 38-FQFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
