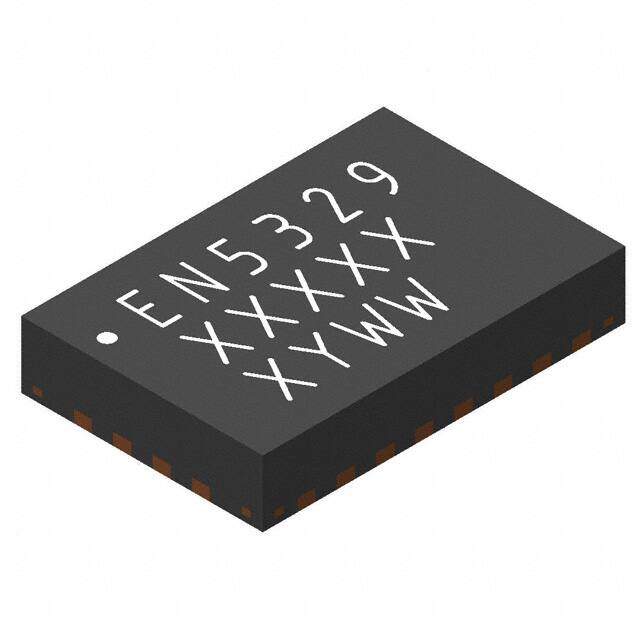

EN5329QI
RoHS
RoHS compliant
RoHS compliantPackage 24-PowerTQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.6-4.9V 10W
PDF
/
Buying Options
Total Price: USD $12.08
Unit Price: USD $12.0821
≥1 USD $12.0821
≥10 USD $9.91325
≥100 USD $9.60355
≥500 USD $9.29385
≥1000 USD $8.98415
Inventory: 11308
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 6mm
Technical
Switching Frequency-Max 3200kHz
Switcher Configuration BUCK
Control Technique PULSE WIDTH MODULATION
Control Mode VOLTAGE-MODE
Control Features Enable, Active High
Current - Output (Max) 2A
Input Voltage-Nom 5V
Voltage - Input (Min) 2.4V
Voltage - Output 1 0.6V~4.9V
Voltage - Input (Max) 5.5V
Efficiency 95%
Number of Outputs 1
JESD-30 Code R-XQCC-N24
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Additional Feature OUTPUT VOLTAGE RANGE FROM 0.6 V TO 4.9 V
Applications ITE (Commercial)
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Feature Remote On/Off, OCP, OTP, SCP, UVLO
Size / Dimension 0.24Lx0.16W x 0.04 H 6.0mmx4.0mmx1.1mm
Series Enpirion? 5300
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 24-PowerTQFN Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
