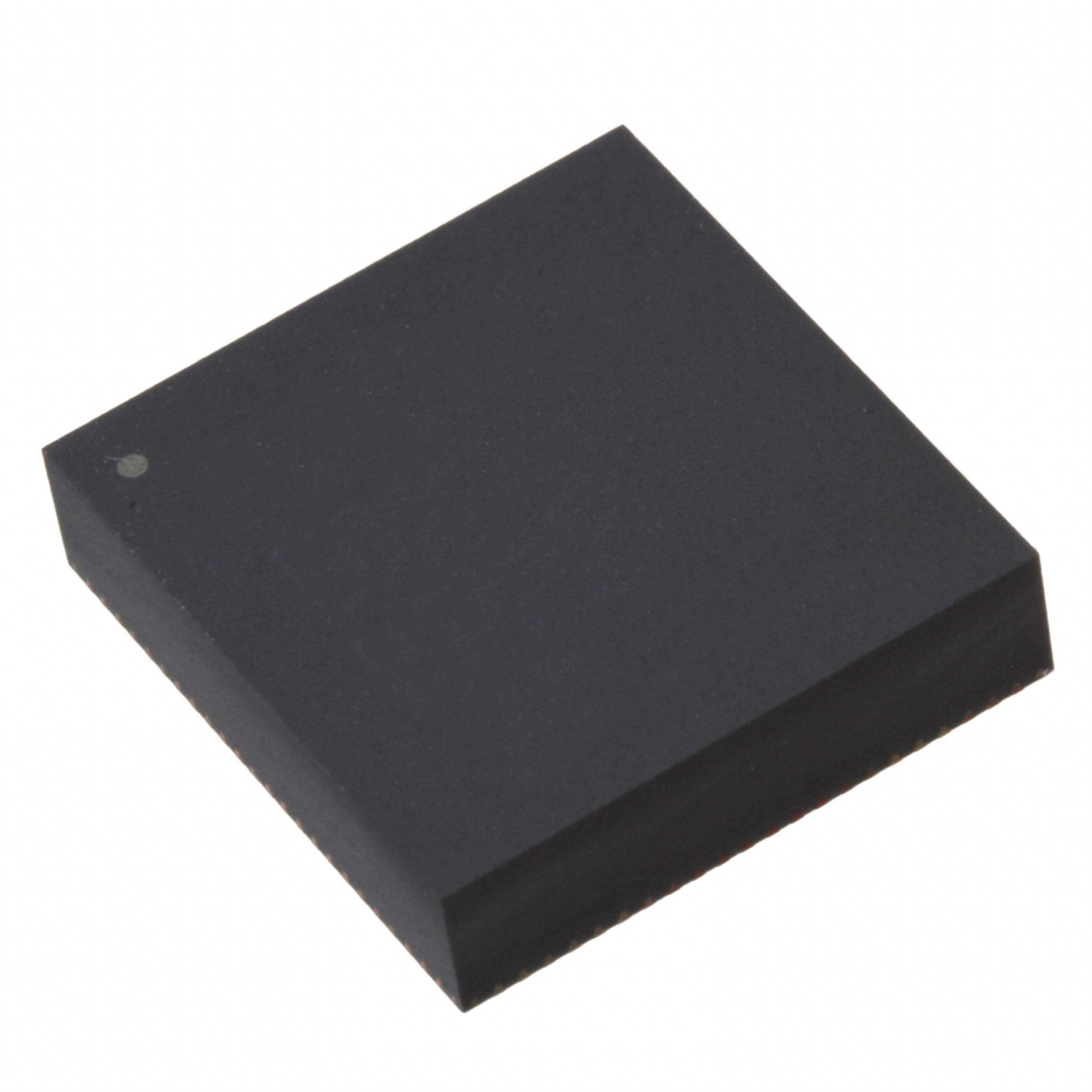

EN23F2QI
RoHS
RoHS compliant
RoHS compliantPackage 92-PowerBFQFN Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER 0.75-3.3V 30W
PDF
/
Buying Options
Total Price: USD $201.49
Unit Price: USD $201.4855
≥1 USD $201.4855
≥10 USD $180.6425
Inventory: 706
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 92-PowerBFQFN Module
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series Enpirion? 2300
Size / Dimension 0.51Lx0.47W x 0.12 H 13.0mmx12.0mmx3.0mm
Feature Remote On/Off, OCP, OTP
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 92
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Additional Feature OUTPUT VOLTAGE RANGE FROM 0.75 V TO 3.3 V
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number EN23
JESD-30 Code R-XQCC-N92
Number of Outputs 1
Efficiency 91%
Voltage - Input (Max) 13.2V
Voltage - Output 1 0.75V~3.3V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Current - Output (Max) 15A
Control Features Enable, Active High
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Dimensions
Height Seated (Max) 3.05mm
Compliance
RoHS Status RoHS Compliant
