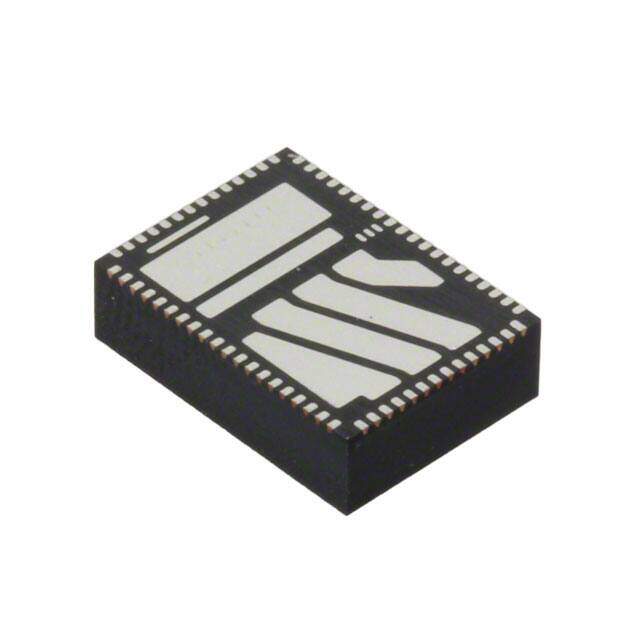

EN2360QI
RoHS
RoHS compliant
RoHS compliantPackage 68-BFQFN Exposed Pad, Module
Category Power Supplies - Board Mount / DC DC Converters
Description
EN2360QI Series 12 V 6 A Integrated Inductor Step-Down DC-DC Converter - QFN-64
PDF
/
Buying Options
Total Price: USD $77.1
Unit Price: USD $77.102
≥1 USD $77.102
≥10 USD $74.6928
≥100 USD $72.28265
≥500 USD $69.87345
≥1000 USD $62.6449
Inventory: 1408
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 68-BFQFN Exposed Pad, Module
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Series Enpirion? 2300
Size / Dimension 0.43Lx0.32W x 0.12 H 11.0mmx8.0mmx3.0mm
JESD-609 Code e3
Feature Remote On/Off, OTP, SCP, UVLO
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 68
ECCN Code EAR99
Type Non-Isolated PoL Module
Terminal Finish Matte Tin (Sn)
Applications ITE (Commercial)
Additional Feature ALSO OPERATES IN ADJUSTABLE MODE FROM 0.75V TO 5 V
Subcategory Switching Regulator or Controllers
Terminal Position QUAD
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 10
JESD-30 Code R-XQCC-N68
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 89%
Voltage - Input (Max) 14V
Voltage - Output 1 0.75V~5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 12V
Current - Output (Max) 6A
Control Features Enable, Active High
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Switcher Configuration BUCK
Dimensions
Height Seated (Max) 3.05mm
Width 8mm
Compliance
RoHS Status RoHS Compliant
