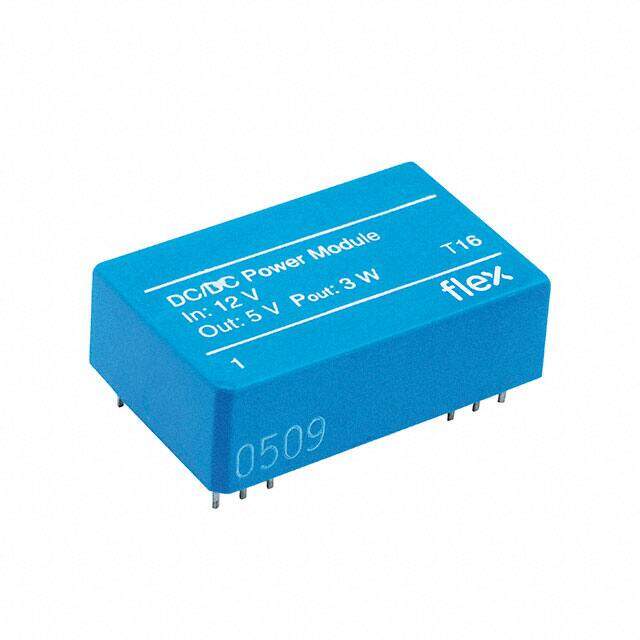

PKV5211PI
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 10 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
18-72; 5; 0.5; 2.5
PDF
/
Buying Options
Total Price: USD $25.45
Unit Price: USD $25.4496
≥1 USD $25.4496
≥10 USD $25.25248
≥100 USD $25.05712
≥500 USD $24.665696
≥1000 USD $23.49094
≥3000 USD $21.533424
Inventory: 386
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Total Power Output-Max 2.5W
Current - Output (Max) 500mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Input (Max) 72V
Voltage - Isolation 1.5kV
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) 10
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Additional Feature IT CAN ALSO OPERATE FROM A 60 V NOMINAL INPUT
Power (Watts) 3W
Applications ITE (Commercial)
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Type Isolated Module
ECCN Code EAR99
Number of Terminations 10
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e3
Size / Dimension 1.25Lx0.80W x 0.42 H 31.8mmx20.3mmx10.7mm
Series PKV (3W)
Operating Temperature -40°C~95°C With Derating
Physical
Surface Mount NO
Package / Case 24-DIP Module, 10 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 16 Weeks
