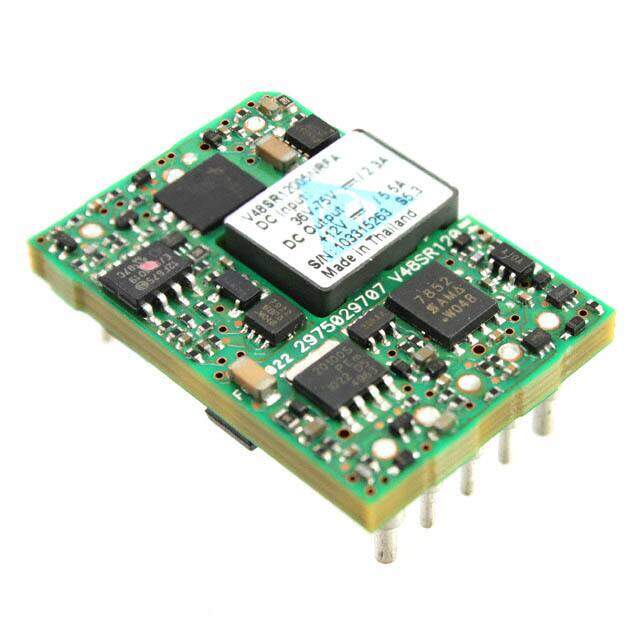

V48SR12005NRFA image
Favorite
V48SR12005NRFA image
Favorite

V48SR12005NRFA

Delta Electronics
RoHS
RoHS RoHS compliant
Package 8-DIP Module, 1/16 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description Module DC-DC 1-OUT 12V 5.5A 66W 8-Pin 1/16-Brick
PDF
/
Buying Options
Total Price: USD $41.39
Unit Price: USD $41.3864
≥1 USD $41.3864
≥10 USD $41.05904
≥100 USD $40.73608
≥500 USD $39.442603
≥1000 USD $37.50296
≥3000 USD $34.916473
Inventory: 154
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Width 22.9mm
Length 33mm
Height 9.144mm

Technical

Min Input Voltage (DC) 36V
Max Input Voltage (DC) 75V
Current - Output 1 5.5A
Control Features Enable, Active Low
Output Power 65W
Output Current 5.5A
Trim/Adjustable Output YES
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Max Output Current 5.5A
Output Voltage 12V
Voltage - Isolation 2.25kV
Efficiency 91%
Number of Outputs 1
Pin Count 8
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 66W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OTP, OVP, UVLO
Size / Dimension 1.30Lx0.90W x 0.36 H 33.0mmx22.9mmx9.2mm
Series Delphi V48SR (66W)
Published 2011
Packaging Tray
Operating Temperature -40°C~120°C

Physical

Number of Pins 8
Package / Case 8-DIP Module, 1/16 Brick
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 24 Weeks
